TAJC475M020RNJ - Kyocera AVX

Description: Tantalum Capacitors - Solid SMD 20volts 4.7uF 20%

Download TAJC475M020RNJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TAJC475M020RNJ - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

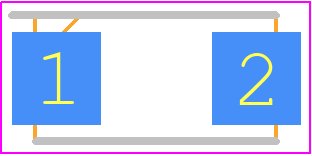

TAJC475M020RNJ - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - CASE C
click to zoom
3D Models
TAJC475M020RNJ - Kyocera AVX - 3D model - Capacitor Moulded Polarised - CASE C
click to zoom

TAJC475M020RNJ Details

  • Manufacturer Part Number:

    TAJC475M020RNJ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia, El Salvador

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    4.7 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    2800 mΩ

  • Height:

    2.6 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0009 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    20 V

  • Ripple Current:

    79 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.06

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

TAJC475M020RNJ Frequently Asked Questions (FAQs)

  • The recommended land pattern for TAJC475M020RNJ can be found in the Kyocera AVX Components' recommended land pattern document, which is typically available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • While the datasheet provides some information on the component's high-frequency characteristics, engineers may want to know more about its behavior under specific high-frequency conditions. Kyocera AVX Components may provide additional information on the component's high-frequency performance through application notes or technical support. Engineers can also consider performing their own testing or simulations to determine the component's behavior under their specific use case.
  • Yes, the TAJC475M020RNJ is compatible with lead-free soldering processes. Kyocera AVX Components ensures that their components meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, which prohibits the use of lead and other hazardous substances in electronic components. Engineers can use lead-free soldering processes with confidence, following the recommended soldering profiles and guidelines provided by Kyocera AVX Components.
  • While the datasheet provides a recommended operating temperature range, engineers may want to know the maximum operating temperature range for the TAJC475M020RNJ. According to Kyocera AVX Components, the maximum operating temperature range for the TAJC475M020RNJ is typically -55°C to +125°C, but this may vary depending on the specific application and use case. Engineers should consult with Kyocera AVX Components' technical support or application notes for more information.
  • The TAJC475M020RNJ is designed to meet the requirements of various industries, including automotive and industrial applications, which often involve high-vibration or high-shock environments. While the datasheet provides some information on the component's mechanical characteristics, engineers may want to know more about its performance under specific vibration or shock conditions. Kyocera AVX Components may provide additional information on the component's reliability and performance in high-vibration or high-shock environments through application notes or technical support.

Trust Checks

This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
