- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TAJD107K020R
- Part Number TAJD107K020R
- Manufacturer Kyocera AVX
- Pin Count 2
- Part Category Capacitor Polarised
- Package Category Capacitor Moulded Polarised

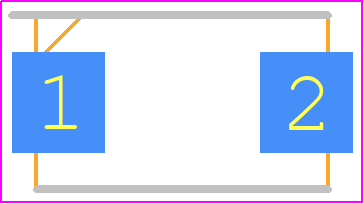

- Footprint Name Capacitor Moulded Polarised - CASE D
- Released Date Mar 7, 2023
- Last Modified Date Mar 7, 2023 10:45 AM UTC
- Pinout / Pin List Click Here (Member Only)
TAJD107K020R Details
-
Manufacturer Part Number:
TAJD107K020R
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
CHIP
-
Reach Compliance Code:
Compliant
-
ECCN Code:
EAR99
-
HTS Code:
8532.21.00.50
-
Manufacturer:
Kyocera AVX Components
-
YTEOL:
0
-
Capacitance:
100 µF
-
Capacitor Type:
TANTALUM CAPACITOR
TAJD107K020R Frequently Asked Questions (FAQs)
-
The recommended soldering temperature for the TAJD107K020R is 260°C (500°F) for 10 seconds or less, with a peak temperature of 240°C (464°F) for 5 seconds or less.
-
Yes, the TAJD107K020R capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium above the allowed limits.
-
The equivalent series resistance (ESR) of the TAJD107K020R is 0.15 ohms maximum at 100 kHz and 20°C (68°F).
-
Yes, the TAJD107K020R is designed to withstand high-vibration environments, with a vibration endurance of 10-2000 Hz, 10 G peak acceleration, and 3 hours per axis.
-
The moisture sensitivity level (MSL) of the TAJD107K020R is MSL 2, which means it can be exposed to a maximum of 30°C (86°F) and 60% relative humidity for 168 hours.
Trust Checks
Machine Generated
System Verified
Community Approved
TAJD107K020R Overview
Use the download button to access the TAJD107K020R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAJD1,
or try a keyword search, such as Tantalum Capacitors
