TAJW686K006RNJ - Kyocera AVX

Description: AVX Tantalum Electrolytic Capacitor 68μF 6.3V dc Solid ±10% Tolerance

Download TAJW686K006RNJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TAJW686K006RNJ - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

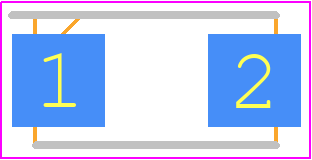

TAJW686K006RNJ - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - CASE W
click to zoom
3D Models
TAJW686K006RNJ - Kyocera AVX - 3D model - Capacitor Moulded Polarised - CASE W
click to zoom

TAJW686K006RNJ Details

  • Manufacturer Part Number:

    TAJW686K006RNJ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia, El Salvador

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    68 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    1500 mΩ

  • Height:

    1.5 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0043 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    6.3 V

  • Ripple Current:

    98 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.06

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm
