- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TAMP-1521GLN+
- Part Number TAMP-1521GLN+
- Manufacturer Mini-Circuits
- Pin Count 12
- Part Category Integrated Circuit
- Package Category Other

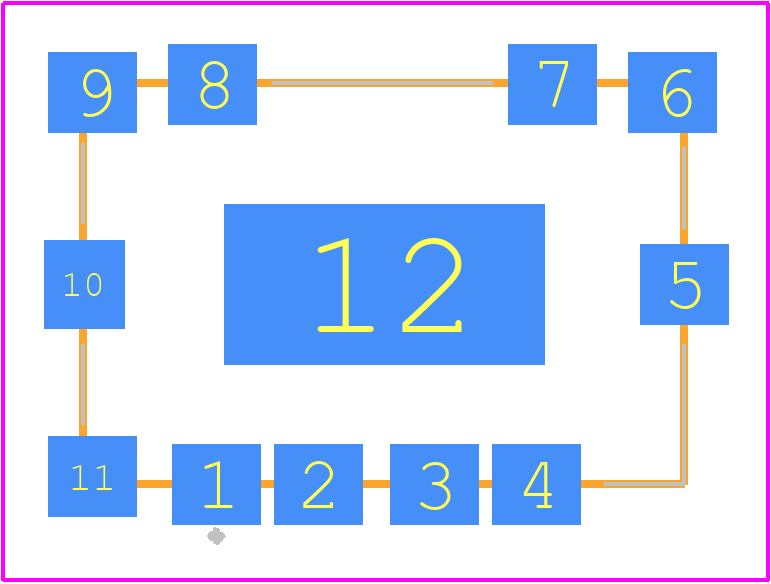

- Footprint Name Other - TAMP-1521GLN+-2
- Released Date Nov 3, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TAMP-1521GLN+ Details
-
Manufacturer Part Number:
TAMP-1521GLN+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
8
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
33 dB
-
Input Power-Max (CW):
17 dBm
-
Operating Frequency-Max:
1520 MHz
TAMP-1521GLN+ Frequently Asked Questions (FAQs)
-
Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and to use a via-stitched ground plane to minimize inductance. Additionally, a low-inductance path should be maintained between the amplifier's ground pins and the system ground.
-
The TAMP-1521GLN+ requires a single +12V to +15V power supply. Ensure the voltage supply is well-regulated and decoupled with capacitors (e.g., 10uF and 100nF) close to the amplifier's power pins. Also, follow the recommended biasing circuit in the datasheet.
-
The TAMP-1521GLN+ can handle up to +10dBm input power without damage. However, for optimal performance and to prevent compression, it's recommended to keep the input power below +5dBm.
-
To achieve the best noise figure performance, ensure the input is properly matched to 50 ohms, and use a high-quality, low-loss input circuit. Additionally, keep the amplifier's operating temperature within the recommended range (0°C to +60°C) and minimize electromagnetic interference.
-
Yes, the TAMP-1521GLN+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout to ensure proper phasing and impedance matching.
Trust Checks
Expert Contribution
System Verified
Community Approved
TAMP-1521GLN+ Overview

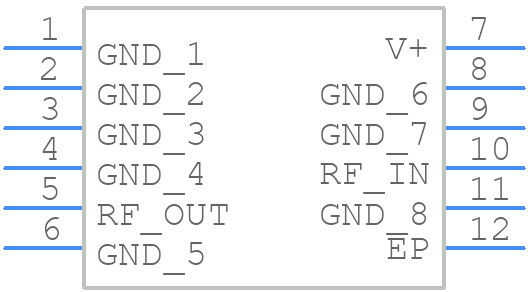

Use the download button to access the TAMP-1521GLN+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAMP-,
or try a keyword search, such as RF/Microwave Amplifiers
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
