TAMP-72LN+ - Mini-Circuits

Description: RF Amplifier SMT Low Noise Amplifier, 400 - 700 MHz, 50?

Download TAMP-72LN+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

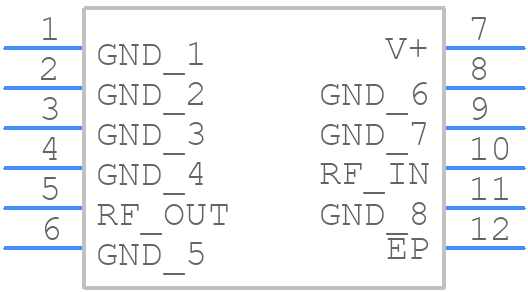

TAMP-72LN+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints

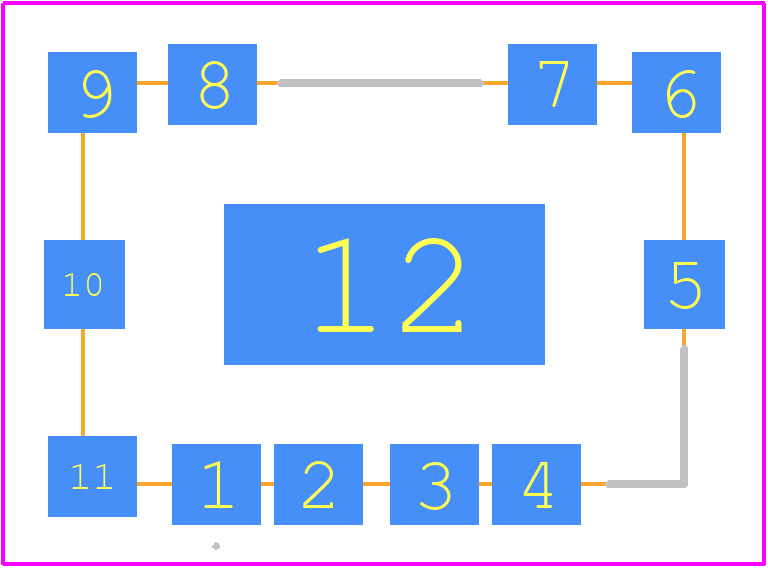

TAMP-72LN+ - Mini-Circuits PCB footprint - Other - Other - TAMP-72LN+-1
click to zoom
3D Models
TAMP-72LN+ - Mini-Circuits - 3D model - Other - TAMP-72LN+-1
click to zoom

TAMP-72LN+ Details

  • Manufacturer Part Number:

    TAMP-72LN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    16.5 dB

  • Input Power-Max (CW):

    27 dBm

  • Operating Frequency-Max:

    700 MHz

  • Operating Frequency-Min:

    400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • VSWR-Max:

    1.15

TAMP-72LN+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a low-inductance path to ground for the amplifier's ground pins. A good layout practice is to keep the input and output traces separate and as short as possible, and to use via stitching to connect the ground plane to the amplifier's ground pins.
  • The TAMP-72LN+ is a self-biased amplifier, but it's still important to ensure the correct voltage supply and decoupling. Use a high-quality voltage regulator to supply the recommended 12V to 15V, and decouple the power supply lines with 10uF and 100nF capacitors in parallel.
  • The TAMP-72LN+ can handle input powers up to +10dBm, but it's recommended to limit the input power to +5dBm to ensure optimal linearity and to prevent damage to the amplifier.
  • The TAMP-72LN+ has a 50Ω input and output impedance. To match the impedance, use a π-network or a T-network with 50Ω resistors and capacitors. The exact values will depend on the specific application and frequency range.
  • The TAMP-72LN+ is specified to operate from -40°C to +85°C, but it's recommended to operate it within a temperature range of 0°C to 70°C for optimal performance and reliability.
