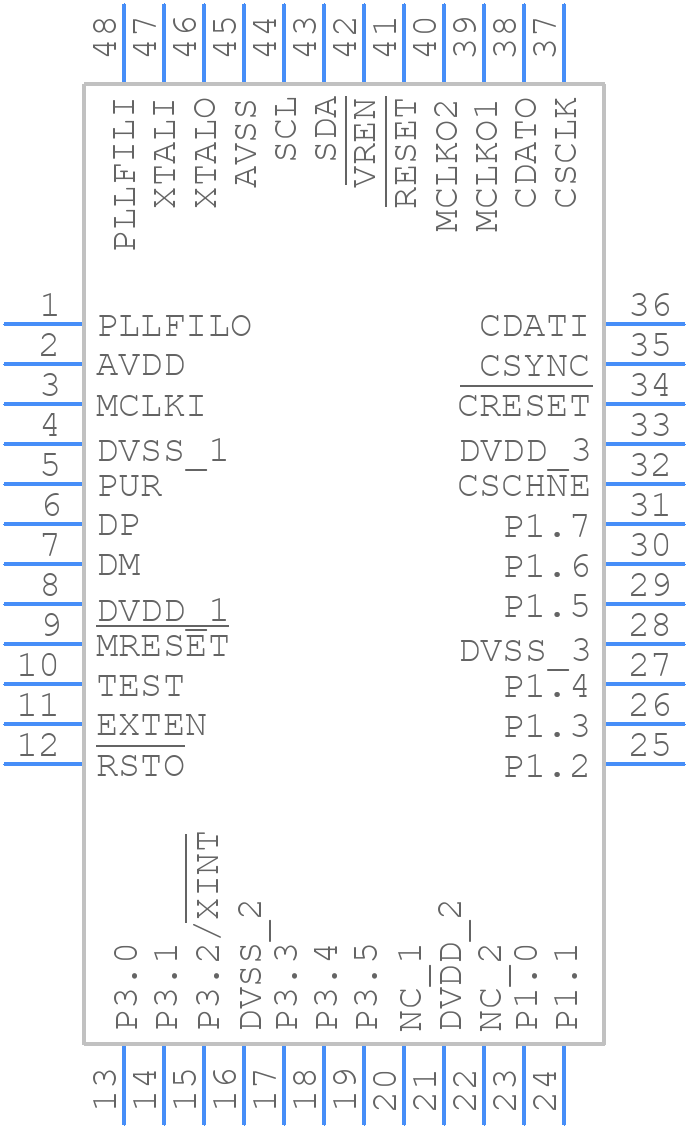

TAS1020BPFBR - Texas Instruments

TAS1020BPFBR Details

• Manufacturer Part Number:

  TAS1020BPFBR

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

• Package Description:

  TQFP-48

• Pin Count:

  48

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Has ADC:

  NO

• Additional Feature:

  ADDRESS BUS WIDTH IS 11 AND DATA BUS WIDTH IS 8 IN EXTERNAL MCU MODE

• Bit Size:

  8

• Bus Compatibility:

  USB

• Clock Frequency-Max:

  6 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Data Transfer Rate-Max:

  1.5 MBps

• JESD-30 Code:

  S-PQFP-G48

• JESD-609 Code:

  e4

• Length:

  7 mm

• Moisture Sensitivity Level:

  2

• Number of I/O Lines:

  14

• Number of Terminals:

  48

• Operating Temperature-Max:

  70 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• ROM Programmability:

  MROM

• Seated Height-Max:

  1.2 mm

• Speed:

  6 MHz

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  BUS CONTROLLER, UNIVERSAL SERIAL BUS
