TAS2505IRGET - Texas Instruments

Description: Digital Input Class-D Speaker Amplifier with Audio Processing and mono headphone amplifier

Download TAS2505IRGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

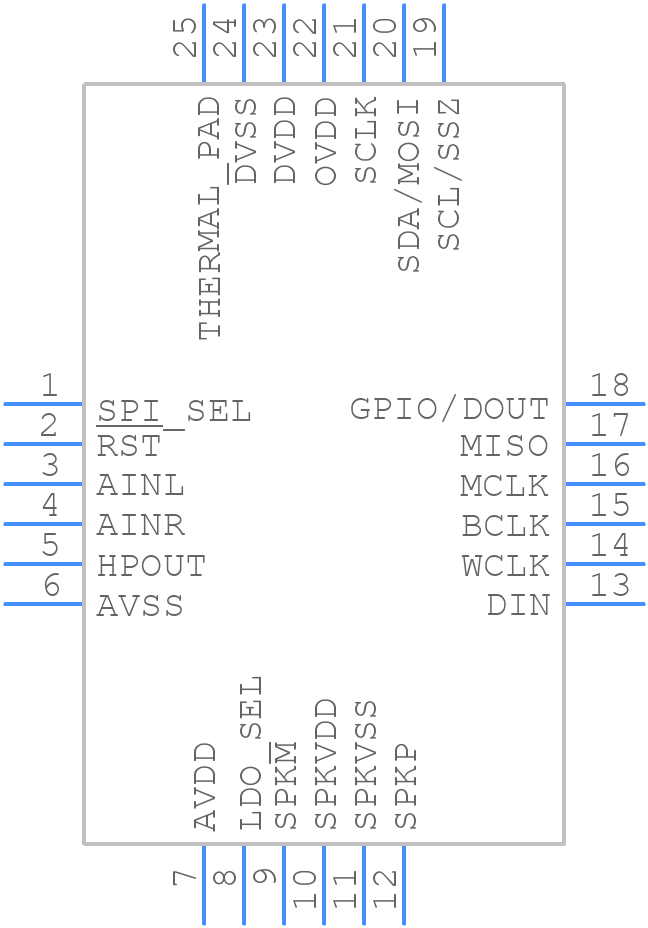

TAS2505IRGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS2505IRGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H_1
click to zoom
3D Models
TAS2505IRGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H_1
click to zoom

TAS2505IRGET Details

  • Manufacturer Part Number:

    TAS2505IRGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Noise Figure-Nom:

    94 dB

  • Number of Bands:

    8

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    2.6 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TAS2505IRGET Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the TAS2505IRGET involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To optimize the performance of the TAS2505IRGET in a noisy environment, use a low-pass filter on the input, add a shield around the device, and use a ferrite bead or a common-mode choke to filter out high-frequency noise.
  • The maximum power dissipation of the TAS2505IRGET is 2.5W. However, this can be increased by using a heat sink or a thermal pad to dissipate heat more efficiently.
  • To troubleshoot issues with the TAS2505IRGET, check the power supply voltage, ensure that the input signals are within the recommended range, and verify that the device is properly configured. Use an oscilloscope to check the output waveforms and verify that they match the expected signals.
  • Yes, the TAS2505IRGET can be used in a battery-powered device. However, it is essential to consider the power consumption and optimize the design to minimize power usage. Use a low-dropout regulator and a power management IC to optimize power consumption.
