TAS3103ADBT - Texas Instruments

Description: Audio DSPs Digital Audio Processor w/ 3D Eff

Download TAS3103ADBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

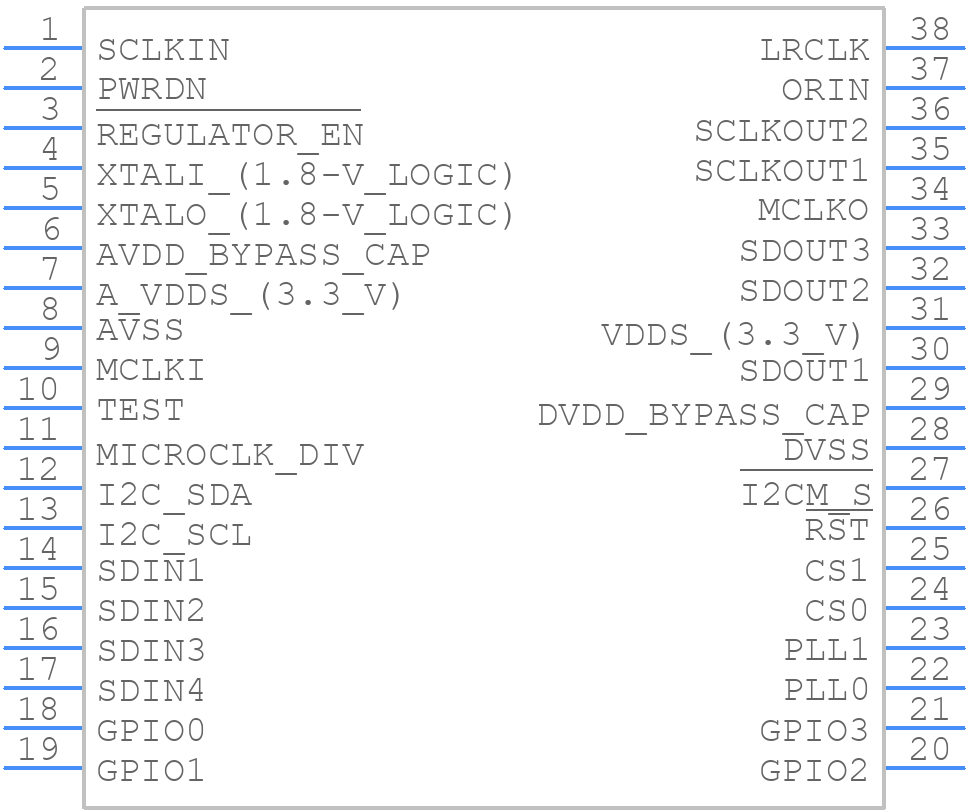

TAS3103ADBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS3103ADBT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBT (R-PDSO-G38)
click to zoom
3D Models
TAS3103ADBT - Texas Instruments - 3D model - Small Outline Packages - DBT (R-PDSO-G38)
click to zoom

TAS3103ADBT Details

  • Manufacturer Part Number:

    TAS3103ADBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    38

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.75

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Bands:

    2

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TAS3103ADBT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
  • Optimization involves selecting the correct clock frequency, configuring the digital filter coefficients, and adjusting the analog gain settings. Refer to the application notes and evaluation modules provided by Texas Instruments for guidance.
  • The maximum allowed capacitance for the analog input coupling capacitors is 10uF. Exceeding this value may affect the device's performance and stability.
  • Yes, the TAS3103ADBT is compatible with 3.3V systems. However, ensure that the analog power supply (AVDD) is within the recommended range of 4.75V to 5.25V, and the digital power supply (DVDD) is within the recommended range of 3.0V to 3.6V.
  • Use a logic analyzer or oscilloscope to verify the digital signals, including the clock, data, and control signals. Check the device's reset and interrupt signals, and ensure that the digital power supply is within the recommended range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAS3103ADBT Overview

Use the download button to access the TAS3103ADBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS31, or try a keyword search, such as Audio Control ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
