SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
RAM (words):
3072
Seated Height-Max:
1.2 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
uPs/uCs/Peripheral ICs Type:
DIGITAL SIGNAL PROCESSOR, OTHER
TAS3108DCPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS3108DCPR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To optimize the TAS3108DCPR for low power consumption, use the lowest possible supply voltage, disable unused features, and adjust the clock frequency to the minimum required for the application. Additionally, use the device's power-saving modes, such as the idle mode, to reduce power consumption when the device is not actively processing audio.
The maximum allowed ambient temperature for the TAS3108DCPR is 85°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliable operation and to prevent thermal shutdown.
Yes, the TAS3108DCPR can be used with a different clock frequency, but it may require adjustments to the device's configuration and may affect its performance. It's recommended to consult the datasheet and application notes for guidance on using alternative clock frequencies.
To troubleshoot audio quality issues with the TAS3108DCPR, check the device's configuration, clock frequency, and power supply voltage. Verify that the audio input and output signals are properly connected and that the device is not overheating. Use audio analysis tools, such as a spectrum analyzer or oscilloscope, to identify the source of the issue and adjust the device's settings accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS3108DCPR Overview

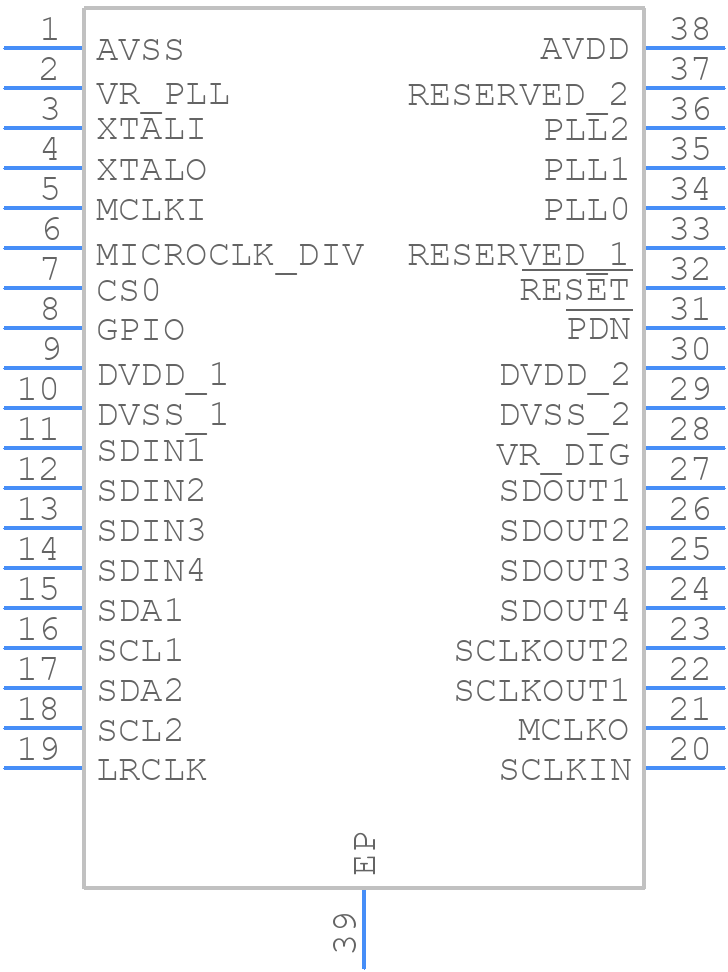

Use the download button to access the TAS3108DCPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS31,
or try a keyword search, such as Digital Signal Processors
