TDK recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the input and output stages. The input and output capacitors should be placed as close as possible to the IC, and the feedback resistors should be placed close to the output pins.
To ensure stability, it's essential to follow the recommended PCB layout, use a low-ESR input capacitor, and ensure that the output capacitor is properly decoupled. Additionally, the feedback resistors should be chosen to provide a stable gain, and the input and output voltage rails should be well-regulated.
The maximum allowed input voltage ripple is not explicitly stated in the datasheet, but as a general rule, it's recommended to keep the input voltage ripple below 1% of the nominal input voltage to ensure stable operation.
The TAS4142-BAAC is rated for operation up to 125°C, but it's essential to consider the derating of the output current and power dissipation at higher temperatures. It's recommended to consult the thermal derating curves in the datasheet and ensure proper heat sinking and thermal management.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component placement for any errors or omissions. Use an oscilloscope to monitor the output voltage and current, and check for any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS4142-BAAC Overview

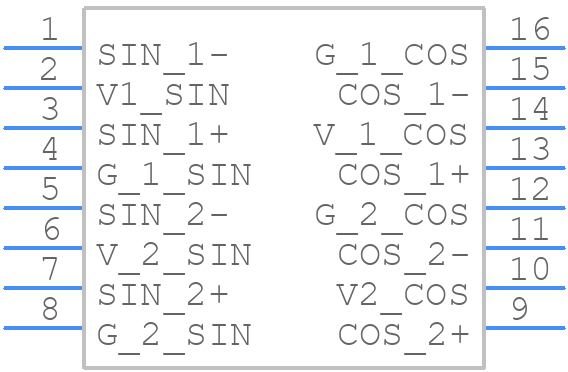

Use the download button to access the TAS4142-BAAC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS41,
or try a keyword search, such as Other Sensors/Transducers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
