TAS5733LDCAR - Texas Instruments

Description: Stereo 20-W, 8V-16.5V Open-Loop Digital Input Audio Power Amplifier with EQ and 3-Band AGL: TAS5733L

Download TAS5733LDCAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

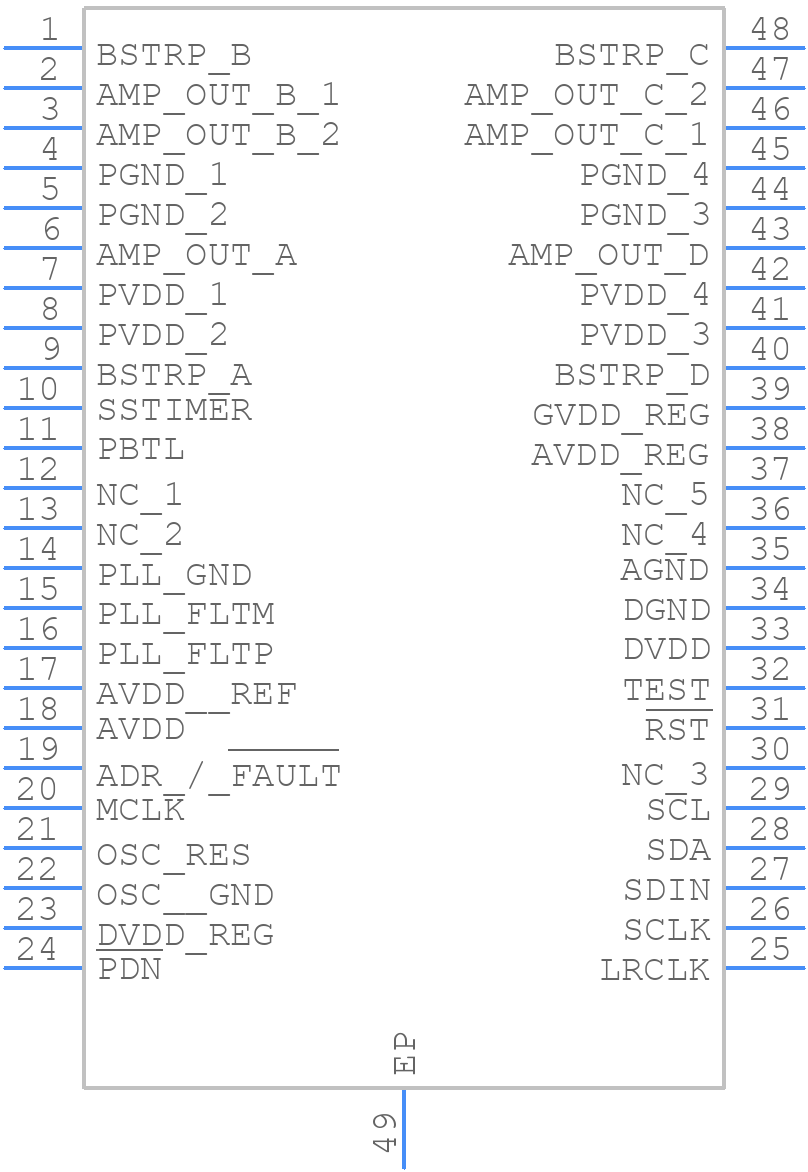

TAS5733LDCAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS5733LDCAR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DCA (R-PDSO-G48)_1
click to zoom
3D Models
TAS5733LDCAR - Texas Instruments - 3D model - Small Outline Packages - DCA (R-PDSO-G48)_1
click to zoom

TAS5733LDCAR Details

  • Manufacturer Part Number:

    TAS5733LDCAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2016-04-03

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Channel Separation:

    79 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    12.5 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    104 dB

  • Number of Bands:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Output Power-Nom:

    12 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP48,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    68 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TAS5733LDCAR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TAS5733LDCAR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. TI provides a recommended layout in the datasheet and application notes.
  • To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pads on the package. TI provides thermal design guidelines in the datasheet and application notes.
  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures proper device initialization and prevents latch-up.
  • To troubleshoot issues, start by checking the power supply voltages, clock signal, and digital input signals. Use an oscilloscope to verify the output waveforms and check for any signs of oscillation or distortion. Consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the TAS5733LDCAR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is designed to operate in harsh environments. Consult the datasheet and TI's quality and reliability documentation for more information.
