TAS5760LDAP - Texas Instruments

Description: Closed Loop I2S Input Amplifier with Power Limiter, PVDDmax of 16.5V

Download TAS5760LDAP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

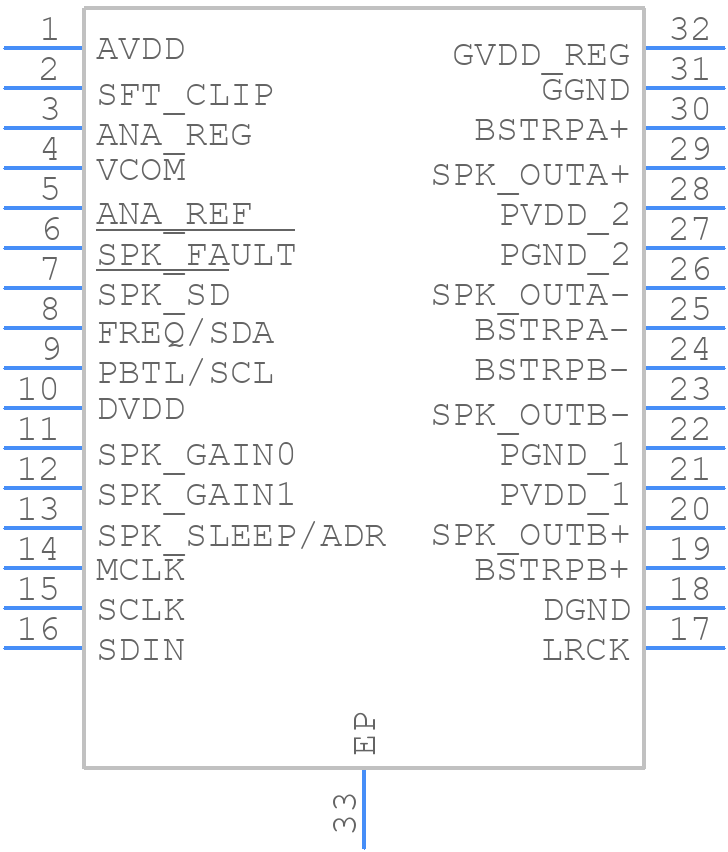

TAS5760LDAP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS5760LDAP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DAP (R-PDSO-G32)
click to zoom
3D Models
TAS5760LDAP - Texas Instruments - 3D model - Small Outline Packages - DAP (R-PDSO-G32)
click to zoom

TAS5760LDAP Details

  • Manufacturer Part Number:

    TAS5760LDAP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e4

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    100 dB

  • Number of Bands:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Power-Nom:

    21 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP32,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.2 mm

TAS5760LDAP Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to first power up the analog supply (AVDD), followed by the digital supply (DVDD), and then the clock signal (MCLK). This ensures proper initialization of the device.
  • The TAS5760LDAP can be configured for mono or stereo operation by setting the MONO pin high or low, respectively. In mono mode, the left and right channels are summed and output on both channels. In stereo mode, the left and right channels are output separately.
  • The maximum input signal amplitude that the TAS5760LDAP can handle is 2.5Vrms. Exceeding this amplitude may result in distortion or clipping of the output signal.
  • The gain of the TAS5760LDAP can be adjusted by setting the GAIN pin to a specific voltage level. The gain range is from -12dB to +12dB in 1dB steps. The gain setting is stored in an internal register and can be programmed through the I2C interface.
  • The SOFT_RST pin is used to reset the TAS5760LDAP without powering it down. When the SOFT_RST pin is asserted, the device resets its internal registers and returns to its default state. This can be useful for recovering from errors or initializing the device after a power-up sequence.
