SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
16.5 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5760LDCA Frequently Asked Questions (FAQs)
The recommended power-up sequence is to first power up the analog supply (AVDD), followed by the digital supply (DVDD), and then the clock signal (MCLK). This ensures proper initialization of the device.
The TAS5760LDCA can be configured for mono or stereo operation by setting the MONO pin high or low, respectively. In mono mode, the device will output the same audio signal on both channels. In stereo mode, the device will output separate audio signals on each channel.
The maximum output power of the TAS5760LDCA depends on the load impedance and supply voltage. With a 4Ω load and 12V supply, the maximum output power is approximately 20W per channel. However, this can be limited by the thermal performance of the device and the application.
The TAS5760LDCA has a built-in thermal protection circuit that will shut down the device if the junction temperature exceeds 150°C. To implement thermal protection, ensure good thermal design practices, such as providing adequate heat sinking and airflow, and monitoring the device temperature using the THERM pin.
The recommended layout and routing for the TAS5760LDCA involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, ensure that the power supply decoupling capacitors are placed close to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5760LDCA Overview

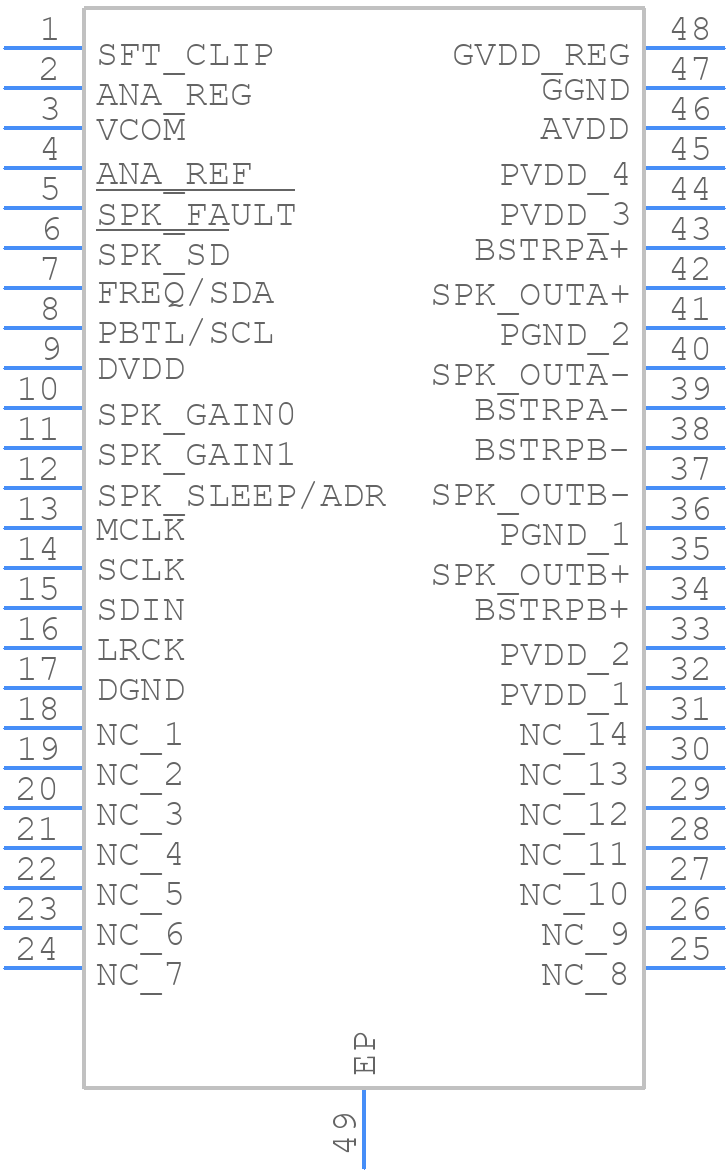

Use the download button to access the TAS5760LDCA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio Control ICs
