TAS5760LDCAR - Texas Instruments

Description: Closed Loop I2S Input Amplifier with Power Limiter, PVDDmax of 16.5V

Download TAS5760LDCAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

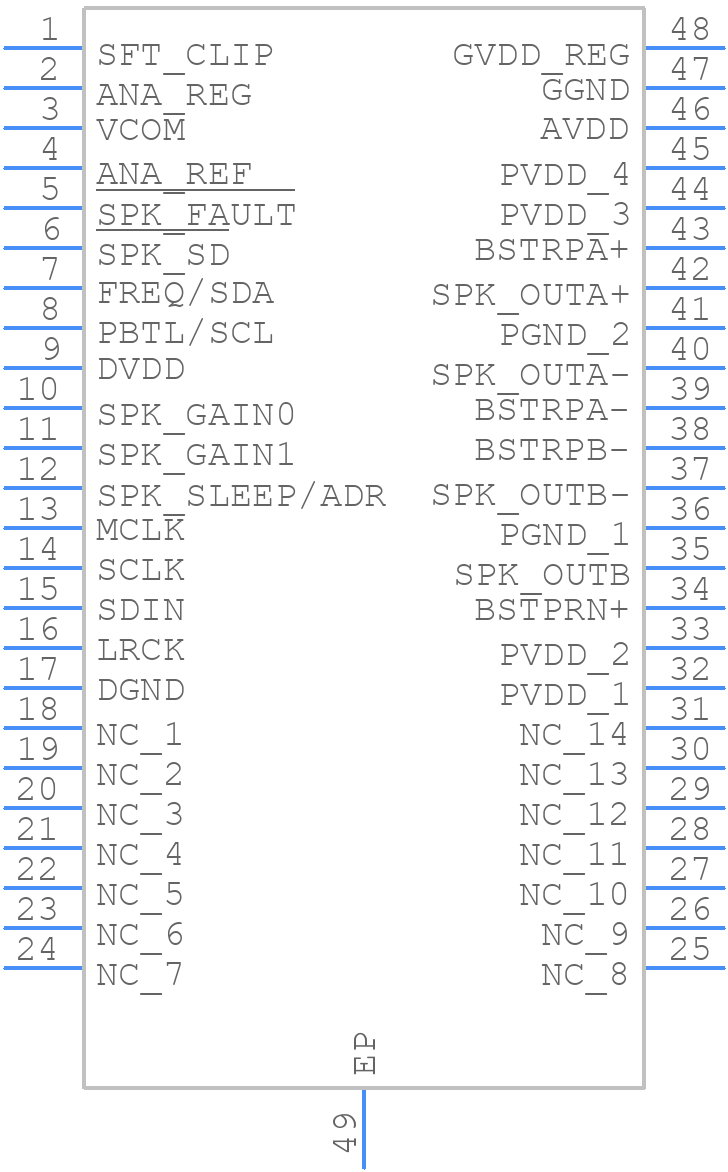

TAS5760LDCAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS5760LDCAR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DCA (R-PDSO-G48)_1
click to zoom
3D Models
TAS5760LDCAR - Texas Instruments - 3D model - Small Outline Packages - DCA (R-PDSO-G48)_1
click to zoom

TAS5760LDCAR Details

  • Manufacturer Part Number:

    TAS5760LDCAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    12.5 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    100 dB

  • Number of Bands:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Power-Nom:

    21 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TAS5760LDCAR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to first power up the analog supply (AVDD), followed by the digital supply (DVDD), and then the clock signal (MCLK). This ensures proper initialization of the device.
  • The TAS5760LDCAR can be configured for mono or stereo operation by setting the MONO pin high or low, respectively. Additionally, the I2S format can be set to mono or stereo using the I2S_CFG register.
  • The TAS5760LDCAR can handle up to 20W of power per channel, but this depends on the specific application and thermal design. It's recommended to consult the thermal design guidelines in the datasheet to ensure proper heat dissipation.
  • The TAS5760LDCAR has a built-in thermal protection circuit that can be configured to shut down the device when it exceeds a certain temperature threshold. This can be done by setting the TSD_CFG register and using an external thermistor to monitor the device temperature.
  • The recommended layout and routing for the TAS5760LDCAR involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the clock signal traces. It's also recommended to follow the layout guidelines in the datasheet and application notes.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAS5760LDCAR Overview

Use the download button to access the TAS5760LDCAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57, or try a keyword search, such as Audio Control ICs
