TAS5760LDDCAR - Texas Instruments

Description: Closed Loop I2S Input Amplifier with Power Limiter and Integrated Headphone, PVDDmax of 16.5V

Download TAS5760LDDCAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

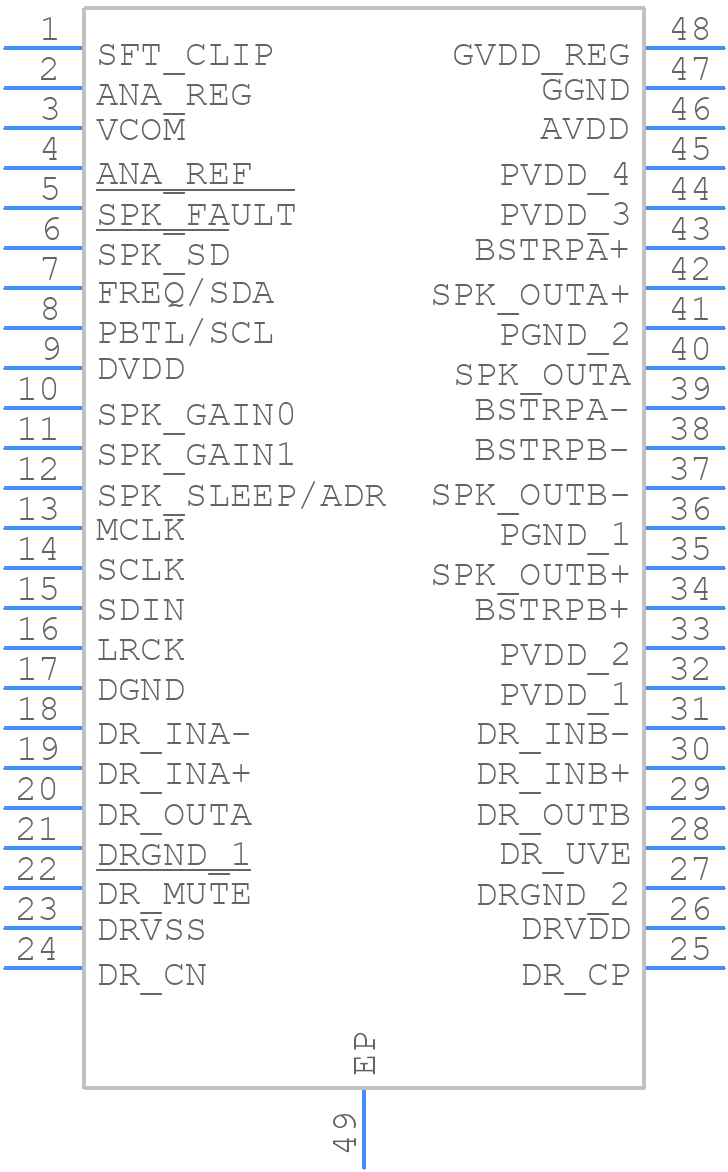

TAS5760LDDCAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS5760LDDCAR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DCA (R-PDSO-G48)_1
click to zoom
3D Models
TAS5760LDDCAR - Texas Instruments - 3D model - Small Outline Packages - DCA (R-PDSO-G48)_1
click to zoom

TAS5760LDDCAR Details

  • Manufacturer Part Number:

    TAS5760LDDCAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    12.5 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    100 dB

  • Number of Bands:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Power-Nom:

    21 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TAS5760LDDCAR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
  • The TAS5760LDDCAR can be configured for mono or stereo operation through the I2C interface. The device has a dedicated register (MONO_STEREO_CTRL) that allows the user to select between mono and stereo modes.
  • The maximum output power of the TAS5760LDDCAR depends on the load impedance and supply voltage. According to the datasheet, the maximum output power is 20W per channel into a 4Ω load with a 12V supply voltage.
  • The TAS5760LDDCAR has a built-in thermal protection feature that shuts down the device when the junction temperature exceeds 150°C. However, it is recommended to implement external thermal protection measures, such as a thermal sensor and a shutdown circuit, to ensure reliable operation.
  • The recommended layout and routing for the TAS5760LDDCAR involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the clock signal traces. It is also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAS5760LDDCAR Overview

Use the download button to access the TAS5760LDDCAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57, or try a keyword search, such as Audio Control ICs
