TAS5760MDAP - Texas Instruments

Description: Closed Loop I2S Input Amplifier with Power Limiter, PVDDmax of 26.4V

Download TAS5760MDAP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

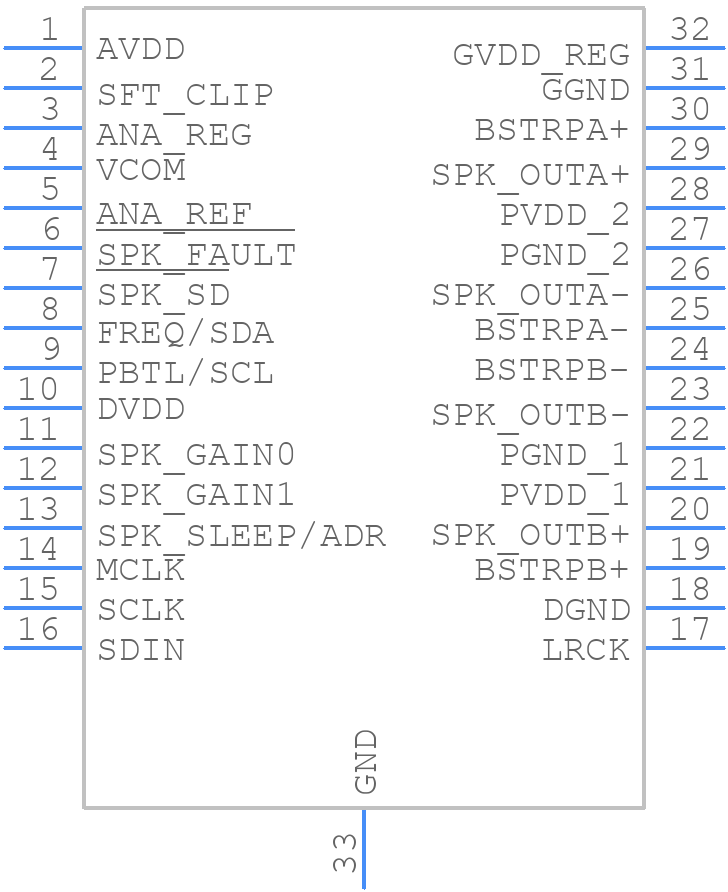

Symbol
TAS5760MDAP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS5760MDAP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TAS5760MDAP
click to zoom
3D Models
TAS5760MDAP - Texas Instruments - 3D model - Small Outline Packages - TAS5760MDAP
click to zoom

TAS5760MDAP Details

  • Manufacturer Part Number:

    TAS5760MDAP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e4

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    100 dB

  • Number of Bands:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Power-Nom:

    55 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP32,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    26.4 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.2 mm

TAS5760MDAP Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply PVDD (analog power) first, followed by DVDD (digital power), and then the clock signal. This ensures proper device initialization and prevents latch-up.
  • To optimize thermal performance, ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider using a heat sink or thermal interface material. Also, minimize power dissipation by optimizing the device's operating conditions.
  • The maximum allowed clock jitter for the TAS5760MDAP is 100 ps RMS. Exceeding this value may affect the device's performance and audio quality.
  • Yes, the TAS5760MDAP can be used with separate analog and digital power supplies. However, ensure that the power supplies are well-regulated and decoupled to prevent noise coupling and interference.
  • To troubleshoot audio artifacts or distortion issues, check the device's power supply, clock signal, and analog input signals. Ensure that the device is properly configured, and the analog input signals are within the specified range. Also, verify that the device is not overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAS5760MDAP Overview

Use the download button to access the TAS5760MDAP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57, or try a keyword search, such as Audio Control ICs
