TAS5760MDDCA - Texas Instruments

Description: TEXAS INSTRUMENTS - TAS5760MDDCA - Audio Power Amplifier, 40 W, D, 2 Channel, 4.5V to 26V, HTSSOP, 48 Pins

Download TAS5760MDDCA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

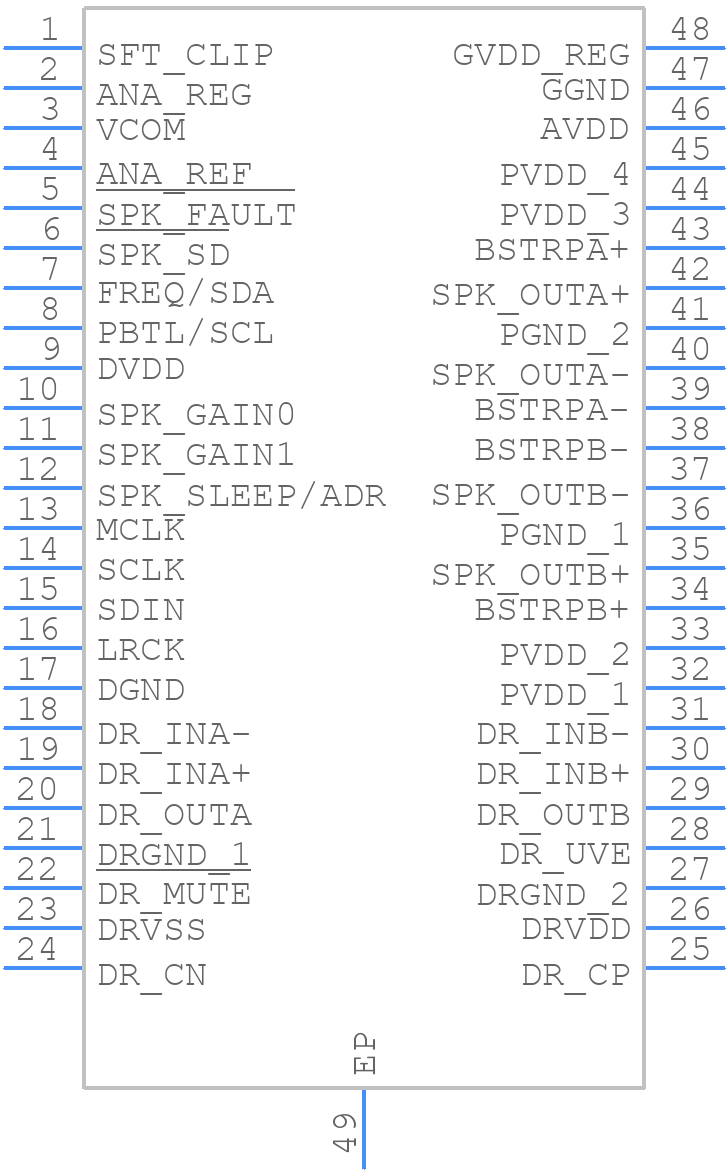

Symbol
TAS5760MDDCA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS5760MDDCA - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DCA (R-PDSO-G48
click to zoom
3D Models
TAS5760MDDCA - Texas Instruments - 3D model - Small Outline Packages - DCA (R-PDSO-G48
click to zoom

TAS5760MDDCA Details

  • Manufacturer Part Number:

    TAS5760MDDCA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    12.5 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    100 dB

  • Number of Bands:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Power-Nom:

    24 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP48,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    26.4 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TAS5760MDDCA Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to first power up the analog supply (AVDD), followed by the digital supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
  • The TAS5760MDDCA can be configured for mono or stereo operation by setting the MONO/STEREO pin high or low, respectively. Additionally, the device can be configured through the I2C interface using the MONO/STEREO register.
  • The maximum power that the TAS5760MDDCA can deliver to a speaker depends on the supply voltage and the impedance of the speaker. According to the datasheet, the device can deliver up to 20W per channel into a 4Ω load with a 12V supply voltage.
  • The TAS5760MDDCA has a built-in thermal protection circuit that shuts down the device when the junction temperature exceeds 150°C. Additionally, the device can be configured to generate an interrupt signal when the temperature exceeds a certain threshold, allowing the system to take corrective action.
  • The recommended layout and routing for the TAS5760MDDCA involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI). Additionally, the device's thermal pad should be connected to a heat sink or a thermal relief pattern to improve heat dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAS5760MDDCA Overview

Use the download button to access the TAS5760MDDCA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57, or try a keyword search, such as Audio Control ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
