TAS5805MPWP - Texas Instruments

Description: Audio Amplifiers TAS5805M 23-W, Digital Input, Stereo, Closed-Loop Class-D Audio Amplifier with Extended Processing 28-HTSSOP -25 to 85

Download TAS5805MPWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

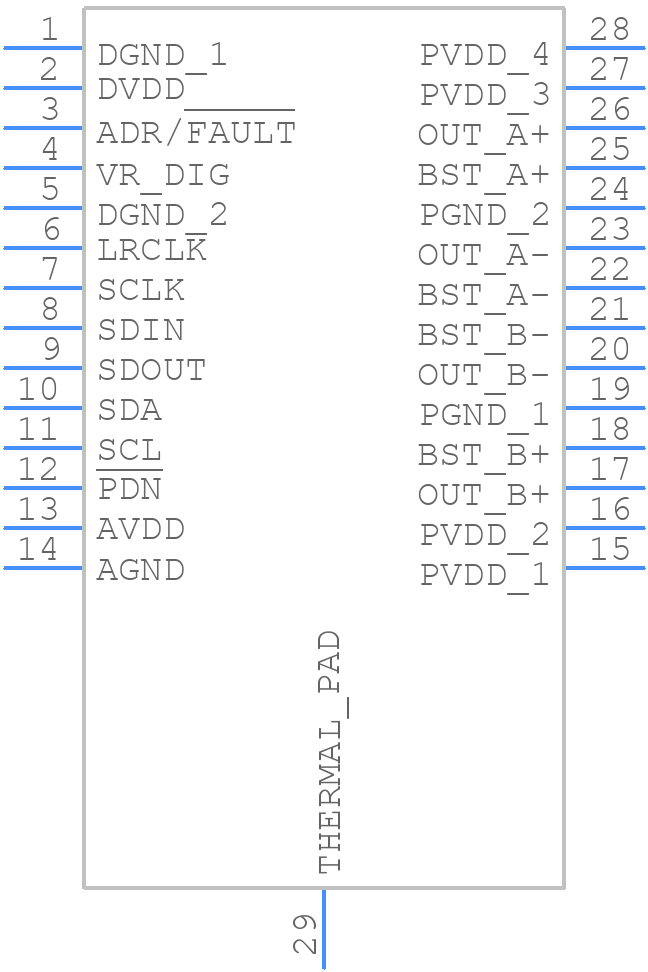

TAS5805MPWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS5805MPWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0028M
click to zoom
3D Models
TAS5805MPWP - Texas Instruments - 3D model - Small Outline Packages - PWP0028M
click to zoom

TAS5805MPWP Details

  • Manufacturer Part Number:

    TAS5805MPWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-09-20

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Channel Separation:

    100 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    107 dB

  • Number of Bands:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Power-Nom:

    23 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    26.4 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TAS5805MPWP Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
  • Optimization involves selecting the correct clock frequency, configuring the digital filter coefficients, and adjusting the analog gain settings. Consult the application notes and evaluation modules provided by Texas Instruments for guidance.
  • The TAS5805MPWP has a maximum junction temperature of 150°C. Ensure proper heat sinking and thermal management to prevent overheating. A thermal pad is available on the package for heat dissipation.
  • Use a logic analyzer or oscilloscope to verify the digital signals, including the clock, data, and control signals. Check the device's reset and interrupt signals, and ensure proper configuration of the digital interface mode.
  • The TAS5805MPWP has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent damage. Use ESD-safe materials and equipment, and ensure that the device is properly grounded during handling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAS5805MPWP Overview

Use the download button to access the TAS5805MPWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS58, or try a keyword search, such as Audio Control ICs
