TAS5825PRHBR - Texas Instruments

Description: Audio Amplifiers 4.5V to 26.4V Class-H control digital-in Class-D audio amp with ultra-low idle & superior efficiency 32-VQFN -25 to 85

Download TAS5825PRHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

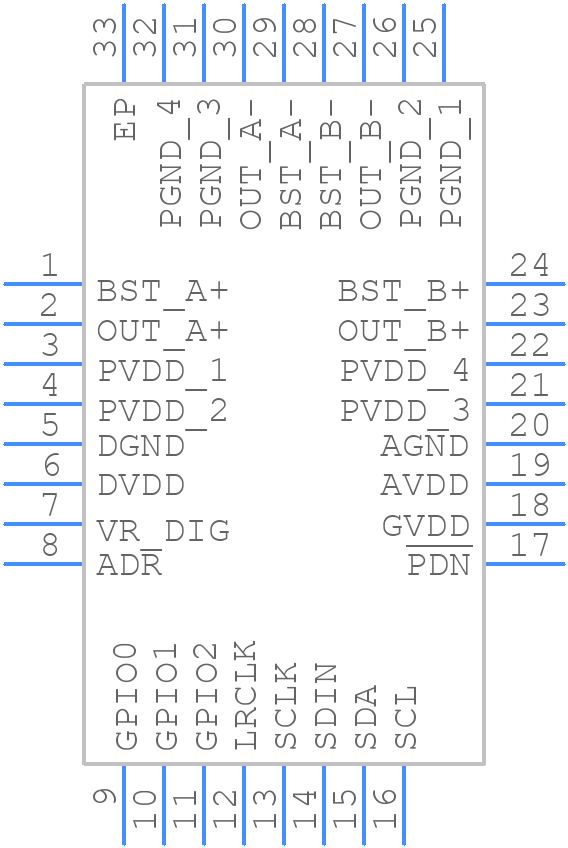

TAS5825PRHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS5825PRHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E VQFN - 1 mm max height
click to zoom
3D Models
TAS5825PRHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E VQFN - 1 mm max height
click to zoom

TAS5825PRHBR Details

  • Manufacturer Part Number:

    TAS5825PRHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-11-07

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Channel Separation:

    100 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Noise Figure-Nom:

    111 dB

  • Number of Bands:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Power-Nom:

    38 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    26.4 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TAS5825PRHBR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TAS5825PRHBR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. TI provides a recommended layout in the datasheet and application notes.
  • To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pads on the package. TI also provides thermal design guidelines in the datasheet.
  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures proper device initialization and prevents latch-up.
  • TI provides a troubleshooting guide in the datasheet and application notes. Common issues include incorrect power-up sequence, inadequate power supply decoupling, and incorrect clock configuration. Use an oscilloscope to verify signal integrity and check for errors.
  • To ensure EMI and EMC compliance, use a shielded enclosure, keep the device away from antennas and other EMI sources, and use EMI filters on the power supply lines. TI provides EMI and EMC guidelines in the datasheet and application notes.
