TAV2-14LN+ - Mini-Circuits

Description: RF Amplifier SMT Low Noise Amplifier, 50 - 10000 MHz, 50ohm

Download TAV2-14LN+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

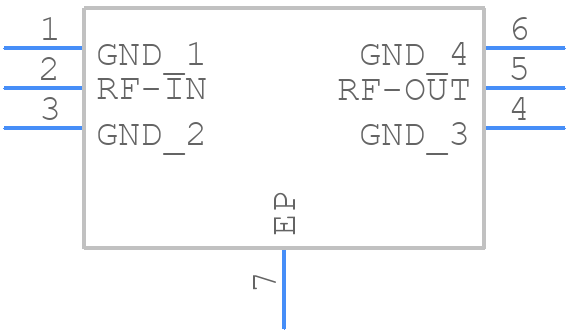

TAV2-14LN+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TAV2-14LN+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - MC1630-1
click to zoom
3D Models
TAV2-14LN+ - Mini-Circuits - 3D model - Small Outline No-lead - MC1630-1
click to zoom

TAV2-14LN+ Details

  • Manufacturer Part Number:

    TAV2-14LN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-04-20

  • Manufacturer:

    Mini-Circuits

  • JESD-609 Code:

    e2

  • Terminal Finish:

    Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier

TAV2-14LN+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The TAV2-14LN+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can use online impedance matching tools or consult with a RF design expert to determine the optimal matching network for your specific application.
  • The maximum power handling of the TAV2-14LN+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application note AN-60-012, the device can handle up to 1W of continuous power. It's essential to derate the power handling based on the operating frequency, temperature, and other environmental factors.
  • The TAV2-14LN+ is designed for linear applications, and its performance may degrade in switching applications. If you need to use it in a switching application, consult with a RF design expert to determine the feasibility and potential modifications required to ensure reliable operation.
  • The operating temperature range of the TAV2-14LN+ is -40°C to +85°C. However, the device's performance may vary across this temperature range. Consult the datasheet and application notes for more information on temperature-related performance characteristics.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAV2-14LN+ Overview

Use the download button to access the TAV2-14LN+ schematic symbol, PCB footprint, and 3D model.
