- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TAV2-501+
- Part Number TAV2-501+
- Manufacturer Mini-Circuits
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - MC1631-1_1
- Released Date May 22, 2022
- Last Modified Date Nov 18, 2023 6:26 AM UTC
- Pinout / Pin List Click Here (Member Only)
TAV2-501+ Details
-
Manufacturer Part Number:
TAV2-501+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
Moisture Sensitivity Level:
1
TAV2-501+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
-
The TAV2-501+ has a nominal input and output impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a impedance matching calculator tool on their website to help with the design.
-
The maximum power handling of the TAV2-501+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application engineers, the device can handle up to 1W of continuous power without damage. Exceeding this power may result in reduced performance or even damage to the device.
-
While the TAV2-501+ is primarily designed for linear applications, it can be used in switching applications with some caution. However, the device may not meet the required switching speed, and the switching frequency should be limited to avoid self-oscillation. It's recommended to consult with Mini-Circuits' application engineers for specific guidance.
-
Common issues with the TAV2-501+ include oscillation, overheating, and poor gain flatness. To troubleshoot, check the PCB layout, impedance matching, and power supply voltage. Ensure that the device is properly biased and that the input and output are properly terminated. Consult the datasheet and application notes for more information.
Trust Checks
Community Provided
System Verified
Community Approved
TAV2-501+ Overview

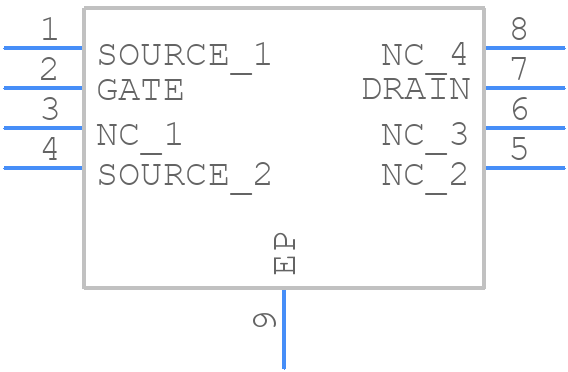

Use the download button to access the TAV2-501+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAV2-,
or try a keyword search, such as RF Small Signal Field-Effect Transistors
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
