The recommended PCB layout involves placing the TB1107A near the power source, using a solid ground plane, and keeping the input and output traces separate. For thermal management, a heat sink with a thermal resistance of 10°C/W or lower is recommended, and the device should be mounted on a multi-layer PCB with thermal vias to dissipate heat effectively.
To ensure proper biasing, the input voltage should be within the recommended range (4.5V to 18V), and the output voltage should be set using a resistive divider network. The bias pin (VCC) should be decoupled with a 10uF capacitor to ground, and the input capacitor should be selected based on the input voltage and frequency.
The TB1107A has a maximum output current of 1.5A and a maximum output voltage of 15V. It's essential to ensure that the output current and voltage do not exceed these ratings to prevent damage to the device.
To protect the TB1107A from overvoltage and undervoltage conditions, it's recommended to use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the recommended range. Additionally, a TVS diode can be used to protect the device from voltage spikes and transients.
The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic or film capacitor. The input capacitor should be placed as close as possible to the input pin of the TB1107A to minimize noise and ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TB1107A Overview

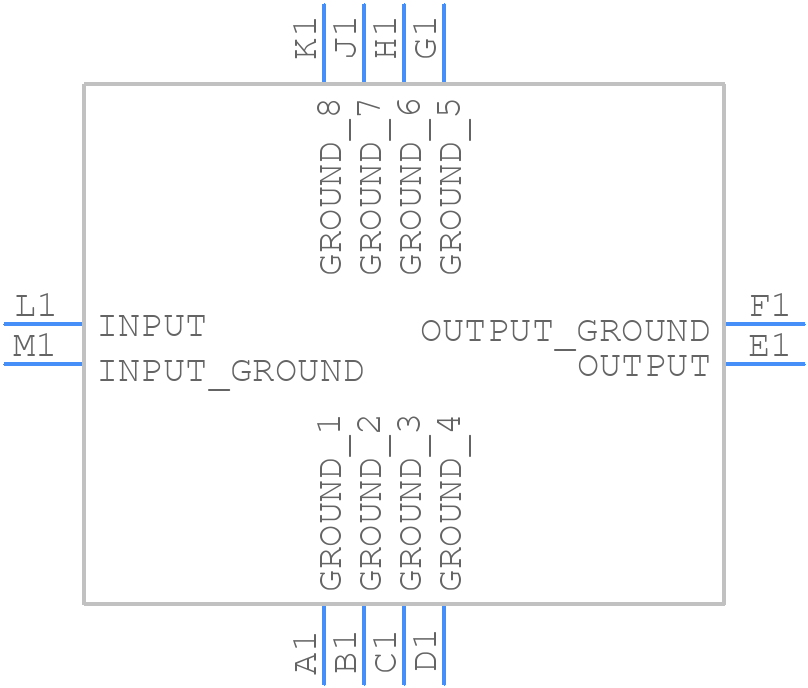

Use the download button to access the TB1107A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TB110,
or try a keyword search, such as SAW Filters
