TB62215AHQ - Toshiba

TB62215AHQ Details

• Manufacturer Part Number:

  TB62215AHQ

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

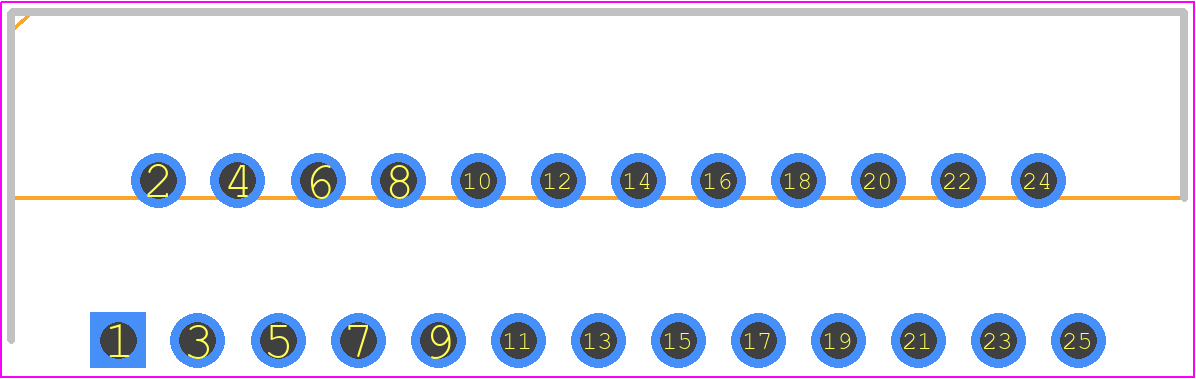

• Package Description:

  1 MM PITCH, PLASTIC, HZIP-25

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0

• Analog IC - Other Type:

  STEPPER MOTOR CONTROLLER

• JESD-30 Code:

  R-PZIP-T25

• Length:

  28.8 mm

• Number of Functions:

  1

• Number of Terminals:

  25

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Output Current-Max:

  3 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SZIP

• Package Equivalence Code:

  ZIP25,.16,.16,40

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE, SHRINK PITCH

• Seated Height-Max:

  19.37 mm

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  BCDMOS

• Temperature Grade:

  OTHER

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1 mm

• Terminal Position:

  ZIG-ZAG

• Width:

  4.5 mm
