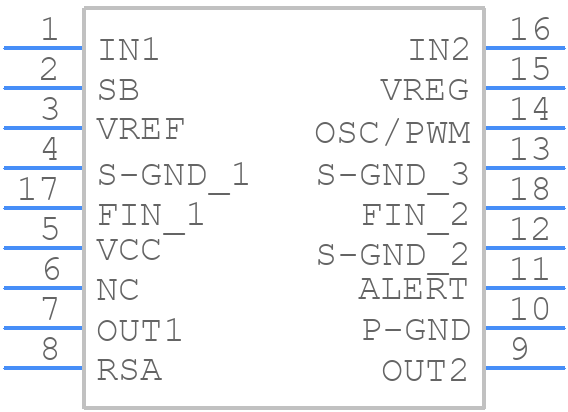

TB6559FG - Toshiba

TB6559FG Details

• Manufacturer Part Number:

  TB6559FG

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  0.300 INCH, 1 MM PITCH, PLASTIC, HSOP-24/16

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0

• Analog IC - Other Type:

  FULL BRIDGE BRUSH DC MOTOR CONTROLLER

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e2

• Length:

  13 mm

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• Output Current-Max:

  2.5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SOP16/24,.37,40

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.85 mm

• Supply Current-Max (Isup):

  8 mA

• Supply Voltage-Max (Vsup):

  27 V

• Supply Voltage-Min (Vsup):

  10 V

• Supply Voltage-Nom (Vsup):

  24 V

• Surface Mount:

  YES

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  Tin/Silver (Sn/Ag)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1 mm

• Terminal Position:

  DUAL

• Width:

  6.4 mm
