The recommended operating voltage range for the TB6674PG is 4.5V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 3.5V to 6.5V for short periods, but prolonged operation outside the recommended range may affect its performance and lifespan.
To ensure proper thermal management, it's crucial to provide a heat sink or a thermal pad on the exposed pad of the TB6674PG. The thermal pad should be connected to a copper plane on the PCB to dissipate heat efficiently. Additionally, ensure good airflow around the device and avoid blocking the airflow with other components or obstacles.
The maximum current rating for the TB6674PG is 1A per channel, with a total current rating of 2A for both channels. However, it's essential to consider the power dissipation and thermal management when operating the device at high currents to avoid overheating and ensure reliable operation.
The TB6674PG is rated for operation up to 125°C, but it's essential to consider the derating curves provided in the datasheet to ensure the device operates within its specified limits. Additionally, proper thermal management and heat sinking are crucial to maintain the device's performance and lifespan in high-temperature environments.
The exposed pad on the TB6674PG should be connected to a copper plane on the PCB to provide a thermal path for heat dissipation. Ensure the copper plane is not connected to any signal or power lines to avoid electrical noise and interference. A thermal pad or heat sink can be attached to the exposed pad to further improve thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TB6674PG Overview

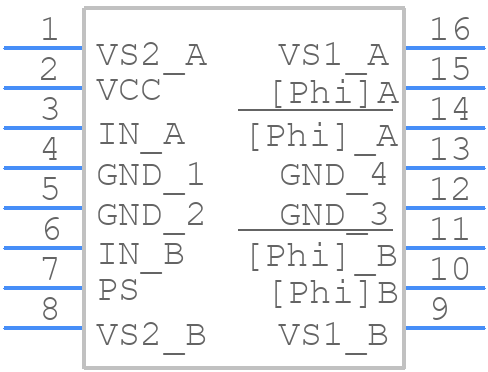

Use the download button to access the TB6674PG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TB667,
or try a keyword search, such as Motion Control Electronics
