The maximum operating temperature range for the TB67B000AHG is -40°C to 125°C.
To ensure reliability in high-temperature applications, it is recommended to follow proper thermal design and layout guidelines, use a heat sink if necessary, and ensure that the device is operated within its specified temperature range.
To minimize EMI, it is recommended to follow a 4-layer PCB layout with a solid ground plane, keep the power traces short and wide, and use a common mode choke or ferrite bead to filter the output.
Yes, the TB67B000AHG is AEC-Q100 qualified and can be used in automotive applications, but it is recommended to follow the specific requirements and guidelines for automotive applications, such as those outlined in the AEC-Q100 standard.
To troubleshoot issues with the TB67B000AHG, it is recommended to follow a systematic approach, including checking the power supply, input and output voltages, and device temperature, as well as reviewing the PCB layout and design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TB67B000AHG Overview

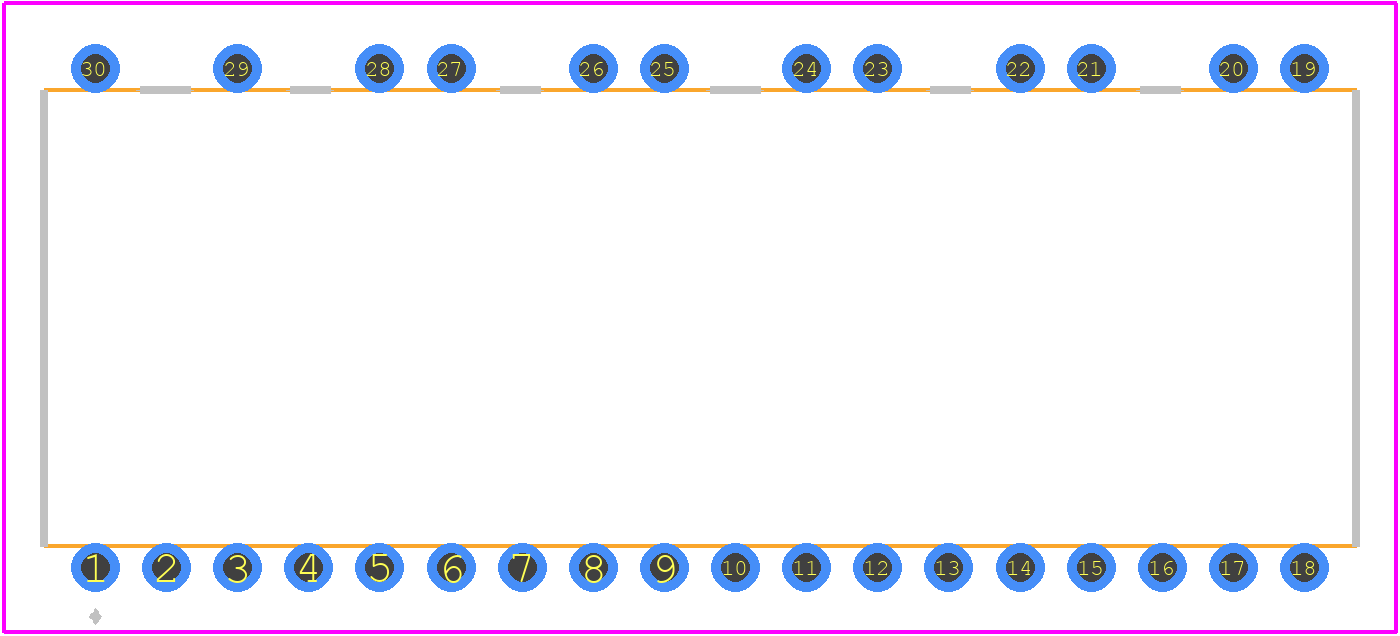

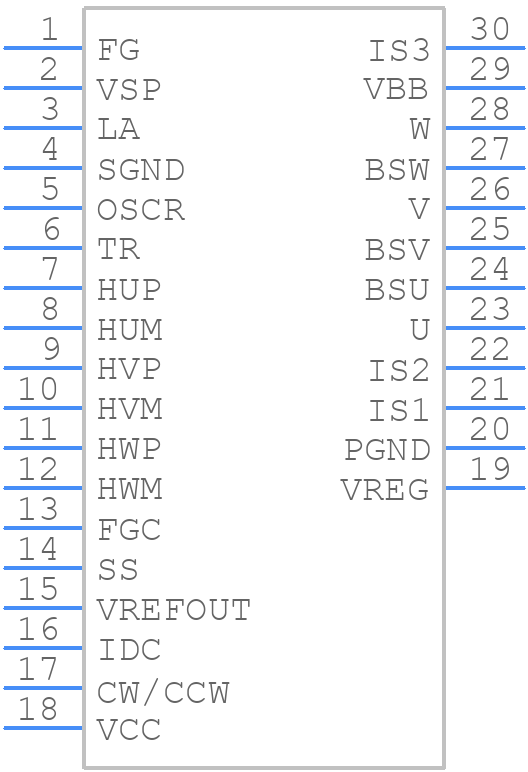

Use the download button to access the TB67B000AHG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TB67B,
or try a keyword search, such as Motion Control Electronics
