TB67H303HG - Toshiba

Description: Motor / Motion / Ignition Controllers & Drivers 10A, 50V DRIVER

Download TB67H303HG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

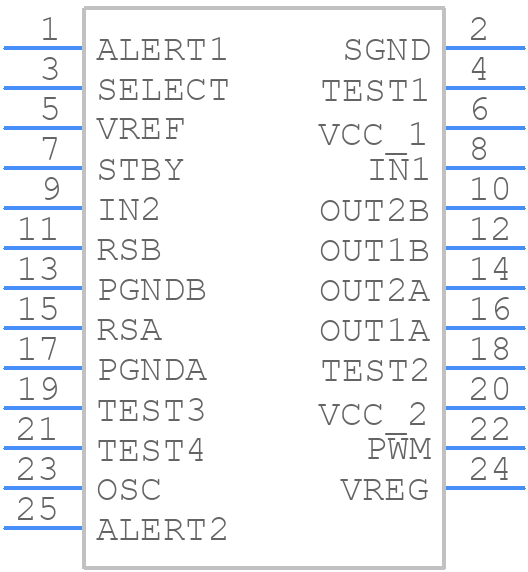

TB67H303HG - Toshiba - PCB symbol
click to zoom
PCB Footprints

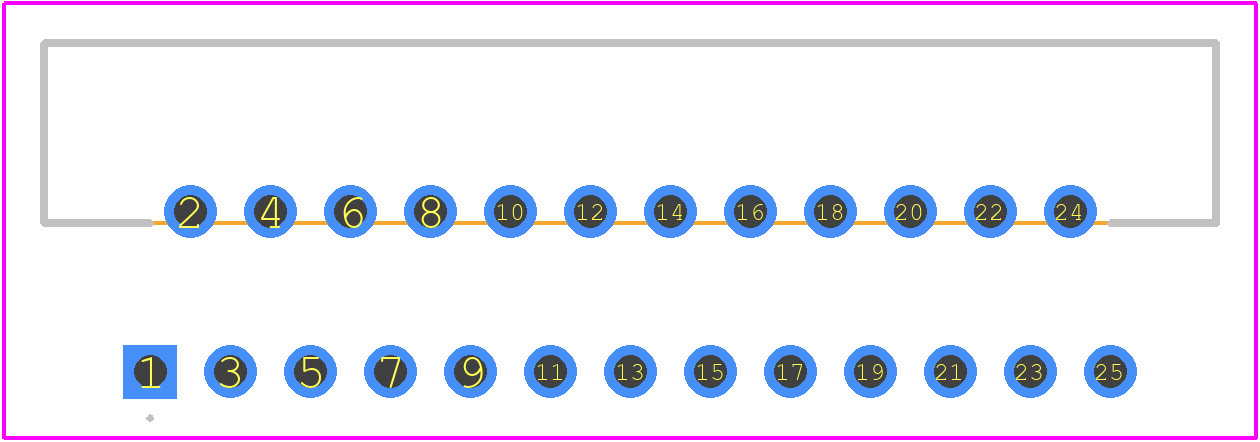

TB67H303HG - Toshiba PCB footprint - Other - Other - TB67H303HG-2
click to zoom
3D Models
TB67H303HG - Toshiba - 3D model - Other - TB67H303HG-2
click to zoom

TB67H303HG Details

  • Manufacturer Part Number:

    TB67H303HG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    1 MM PITCH, PLASTIC, HZIP-25

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.9

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PZIP-T25

  • Length:

    28.8 mm

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SZIP

  • Package Equivalence Code:

    ZIP25,.16,.16,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE, SHRINK PITCH

  • Seated Height-Max:

    19.37 mm

  • Supply Voltage-Max (Vsup):

    42 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    ZIG-ZAG

  • Width:

    4.5 mm

TB67H303HG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TB67H303HG is -40°C to 125°C.
  • Proper thermal management involves providing a heat sink, ensuring good airflow, and keeping the device away from heat sources. The thermal pad on the bottom of the package should be connected to a heat sink or a copper plane on the PCB.
  • A good PCB layout for the TB67H303HG involves keeping the high-current paths short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane is recommended.
  • The TB67H303HG has built-in overcurrent protection, but additional protection can be achieved by using external current sense resistors and voltage regulators. A fuse or a PTC resettable fuse can also be used to protect against overcurrent.
  • The recommended gate resistance for the TB67H303HG is between 10 ohms and 20 ohms to ensure proper switching and to minimize electromagnetic interference (EMI).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TB67H303HG Overview

Use the download button to access the TB67H303HG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TB67H, or try a keyword search, such as Motion Control Electronics
