The maximum operating temperature range for the TB67H481FTG is -40°C to 125°C, as specified in the datasheet. However, it's recommended to operate within -20°C to 85°C for optimal performance and reliability.
Proper thermal management is crucial for the TB67H481FTG. Ensure good airflow around the device, use a heat sink if necessary, and follow the recommended PCB layout and thermal design guidelines provided in the datasheet and application notes.
The recommended input capacitor value is 10uF to 22uF, with a voltage rating of 25V or higher. A low-ESR ceramic capacitor, such as X5R or X7R, is recommended for optimal performance and stability.
The TB67H481FTG is a versatile driver IC that can be configured for different motor types and applications. Refer to the datasheet and application notes for specific configuration guidelines, and consider factors such as motor type, voltage, current, and control modes.
When designing a PCB with the TB67H481FTG, ensure proper layout and routing to minimize noise, EMI, and thermal issues. Follow the recommended PCB layout guidelines in the datasheet and application notes, and consider factors such as decoupling, grounding, and signal integrity.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TB67H481FTG Overview

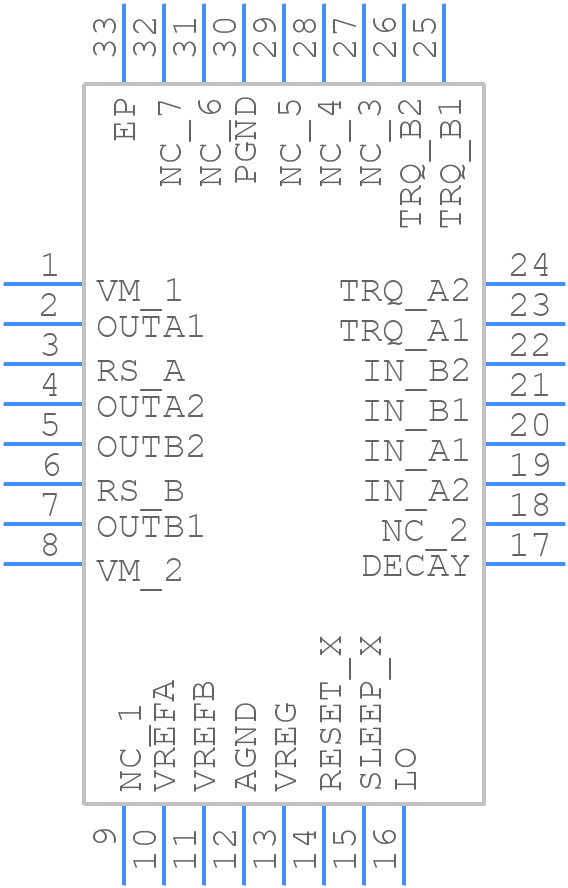

Use the download button to access the TB67H481FTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TB67H,
or try a keyword search, such as Motion Control Electronics
