TB67S142HG - Toshiba

Description: Motor/Motion/Ignition Controllers & Drivers 84V/3A 2 PH UNIPOLAR STEP MOTOR DRIVER

Download TB67S142HG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

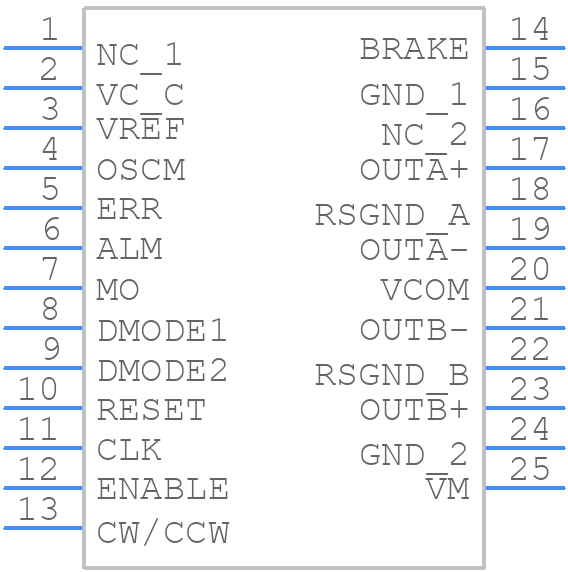

TB67S142HG - Toshiba - PCB symbol
click to zoom
PCB Footprints

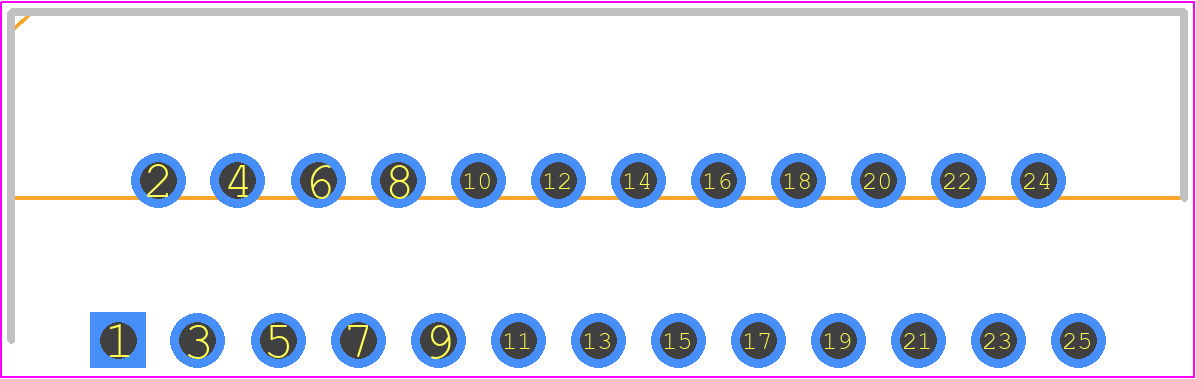

TB67S142HG - Toshiba PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - HZIP25-P-1.00F
click to zoom
3D Models
TB67S142HG - Toshiba - 3D model - Transistor Outline, Vertical - HZIP25-P-1.00F
click to zoom

TB67S142HG Details

  • Manufacturer Part Number:

    TB67S142HG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PZIP-T25

  • Length:

    28.8 mm

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SZIP

  • Package Equivalence Code:

    ZIP25,.16,.16,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    19.37 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    ZIG-ZAG

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.5 mm

TB67S142HG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TB67S142HG is -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C.
  • The maximum current rating for the TB67S142HG is dependent on the package type and the PCB layout. Refer to the thermal derating curves in the datasheet to determine the maximum current rating for your specific application.
  • The VCC pin is the power supply pin for the internal logic circuitry of the TB67S142HG. It should be connected to a stable 5V power supply, and a decoupling capacitor should be placed close to the pin to reduce noise.
  • Yes, the TB67S142HG can be used to drive a stepper motor. However, it is primarily designed for DC brushed motor applications, and the built-in current sense and control features may not be optimized for stepper motor control.
  • The minimum input pulse width required for the TB67S142HG is typically around 100ns, but this can vary depending on the specific application and the clock frequency of the input signal.
