TBD62083AFWG(Z,EHZ - Toshiba

Description: DMOS Transistor Array to 18-Pin SOP

Download TBD62083AFWG(Z,EHZ Model

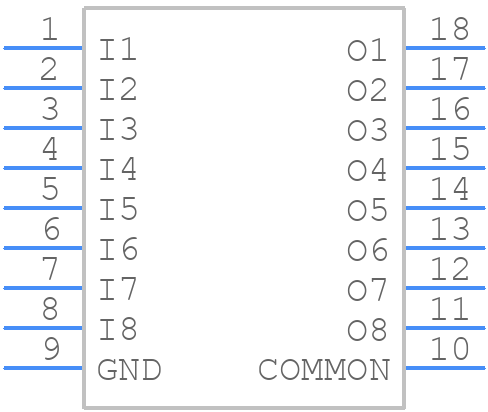

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TBD62083AFWG(Z,EHZ - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - P-SOP18-0812-1.27-001
click to zoom
3D Models
TBD62083AFWG(Z,EHZ - Toshiba  - 3D model - Small Outline Packages - P-SOP18-0812-1.27-001
click to zoom

TBD62083AFWG(Z,EHZ Details

  • Manufacturer Part Number:

    TBD62083AFWG(Z,EHZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.98

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G18

  • Length:

    11.515 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.37 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    2.85 mm

  • Supply Voltage-Max:

    25 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.495 mm

TBD62083AFWG(Z,EHZ Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a solid ground plane and thermal vias under the package to improve heat dissipation. A minimum of 2oz copper thickness is recommended for the PCB.
  • To ensure reliable operation at high temperatures, it is recommended to follow the thermal design guidelines, use a heat sink if necessary, and ensure that the device is operated within the specified temperature range.
  • The maximum allowable voltage on the input pins is the voltage rating of the device (VCC) plus 0.3V. Exceeding this voltage may cause damage to the device.
  • Toshiba recommends using ESD protection devices such as TVS diodes or ESD arrays on the input lines to protect the device from electrostatic discharge.
  • The recommended power-up sequence is to apply VCC first, followed by the input signals. This ensures that the device is properly initialized and configured.
