TBD62083APG - Toshiba

Description: 8 channel sink type DMOS transistor array

Download TBD62083APG Model

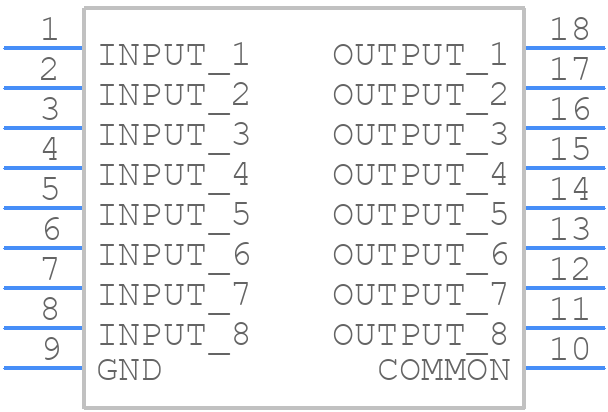

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

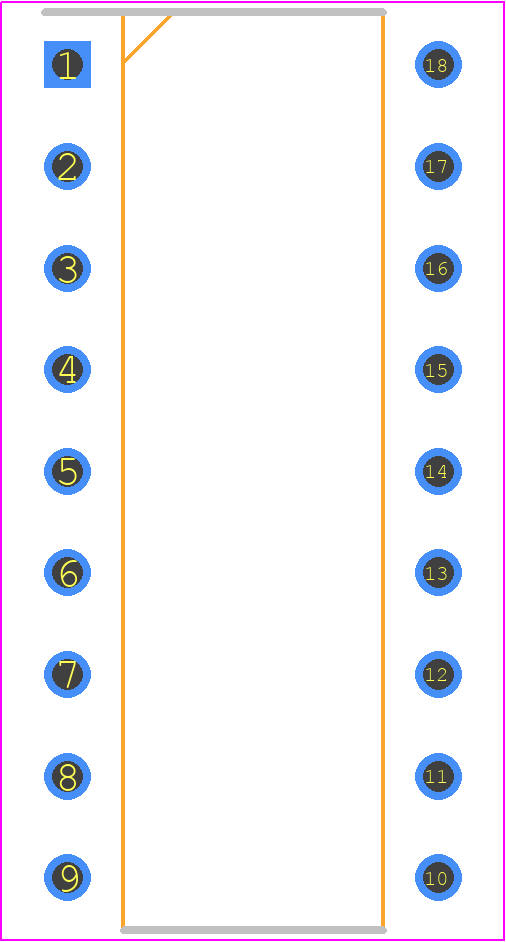

TBD62083APG - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P-DIP18-300-2.54-001
click to zoom
3D Models
TBD62083APG - Toshiba  - 3D model - Dual-In-Line Packages - P-DIP18-300-2.54-001
click to zoom

TBD62083APG Details

  • Manufacturer Part Number:

    TBD62083APG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.62

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDIP-T18

  • Length:

    22.86 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.4 A

  • Output Peak Current Limit-Nom:

    0.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    4.8 mm

  • Supply Voltage-Max:

    25 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.8 µs

  • Turn-on Time:

    0.4 µs

  • Width:

    7.62 mm

TBD62083APG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TBD62083APG involves placing the device near the power source, using a solid ground plane, and minimizing the length of the power traces to reduce EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper cooling, the TBD62083APG should be mounted on a heat sink with a thermal resistance of 1°C/W or less. The heat sink should be attached to the device using a thermal interface material with a thermal conductivity of 1 W/m-K or higher.
  • The maximum allowed voltage on the input pins of the TBD62083APG is 6.5V. Exceeding this voltage may damage the device.
  • The TBD62083APG requires a specific power sequencing to prevent damage. The recommended power-up sequence is to apply the power supply voltage (VCC) first, followed by the input signals. The power-down sequence should be reversed.
  • The TBD62083APG has an ESD rating of 2 kV for human body model (HBM) and 200 V for machine model (MM).
