TBD62384APG - Toshiba

Description: Gate Drivers DMOS Transistor Array 8-CH 50V 0.5A

Download TBD62384APG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

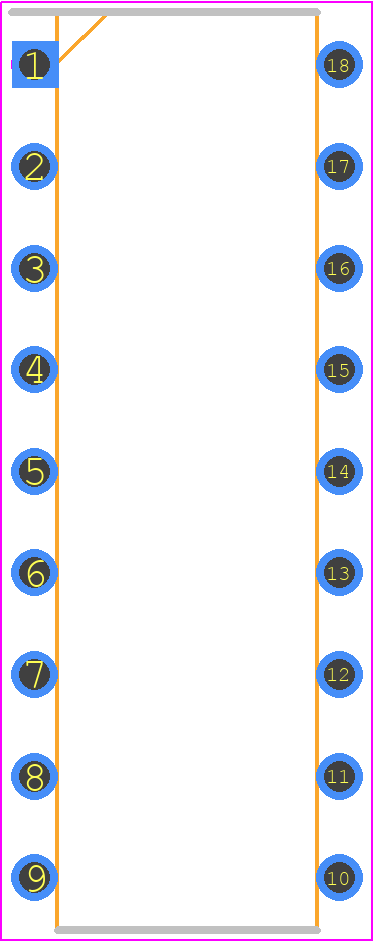

TBD62384APG - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P-DIP18-300-2.54-001_2023
click to zoom
3D Models
TBD62384APG - Toshiba  - 3D model - Dual-In-Line Packages - P-DIP18-300-2.54-001_2023
click to zoom

TBD62384APG Details

  • Manufacturer Part Number:

    TBD62384APG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.62

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDIP-T18

  • Length:

    22.86 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    4.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BCD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

TBD62384APG Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design guidelines, use a heat sink if necessary, and consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
  • Although the datasheet doesn't explicitly state the maximum allowed voltage on the input pins, it's generally recommended to limit the input voltage to 5.5V to prevent damage to the internal ESD protection diodes.
  • While the TBD62384APG is primarily designed for audio applications, it can be used in high-frequency switching applications up to 100 kHz. However, it's essential to carefully evaluate the device's switching characteristics, power dissipation, and thermal performance to ensure reliable operation.
  • To troubleshoot issues with the TBD62384APG, start by verifying the power supply voltage, checking for proper PCB layout and thermal design, and ensuring that the device is operated within its recommended operating conditions. If issues persist, consult Toshiba's application notes and technical support resources for further guidance.
