Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a heat sink if necessary, and consider derating the device's power consumption according to the temperature derating curve provided in the datasheet.
Although the datasheet specifies the recommended operating voltage range, it's essential to note that the maximum allowable voltage on the input pins is typically 5.5V, and exceeding this voltage may cause damage to the device.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and PCB layout for any anomalies. Verify that the device is properly configured, and the output voltage is within the specified range. If issues persist, consult the application notes and contact Toshiba's technical support for further assistance.
Yes, to minimize EMI/EMC issues, it's recommended to follow proper PCB layout practices, use a common-mode choke, and add decoupling capacitors at the input and output pins. Additionally, ensure that the device is properly shielded, and the system is designed to meet the relevant EMI/EMC standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TBD62387APG Overview

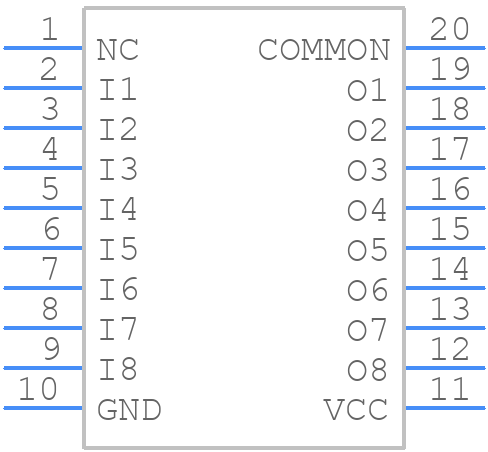

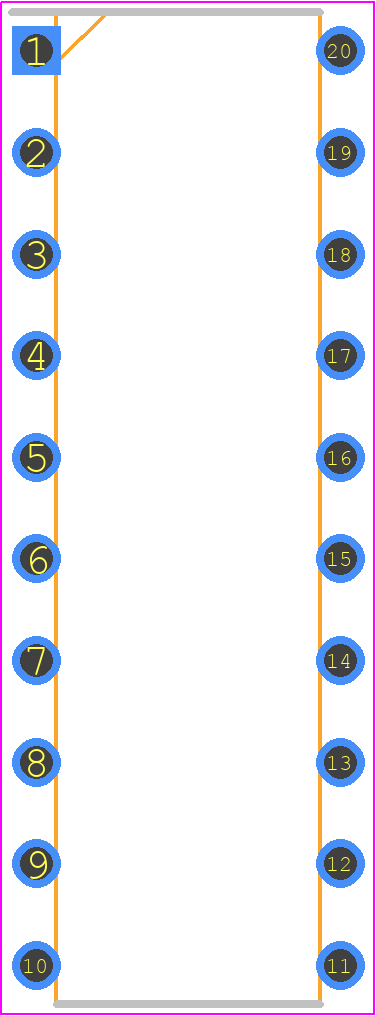

Use the download button to access the TBD62387APG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TBD62,
or try a keyword search, such as Peripheral Drivers
