TBD62503APG - Toshiba

Description: Gate Drivers DMOS Transistor Array 7-CH, 50V/0.5A

Download TBD62503APG Model

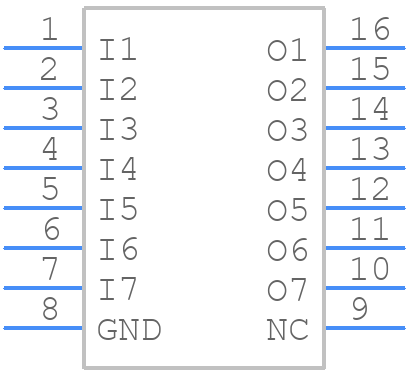

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TBD62503APG - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-16-P-300-2.54A.
click to zoom
3D Models
TBD62503APG - Toshiba  - 3D model - Dual-In-Line Packages - DIP-16-P-300-2.54A.
click to zoom

TBD62503APG Details

  • Manufacturer Part Number:

    TBD62503APG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.62

  • Driver Number of Bits:

    7

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDIP-T16

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.25 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

TBD62503APG Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to consider derating the device's power dissipation according to the ambient temperature.
  • Although the datasheet doesn't specify a maximum allowable voltage, it's generally recommended to limit the input voltage to 5.5V to prevent damage to the internal ESD protection diodes.
  • While the TBD62503APG is primarily designed for audio applications, it can be used in high-frequency switching applications up to 100 kHz. However, it's essential to carefully evaluate the device's switching characteristics and ensure that it meets the specific application requirements.
  • To troubleshoot issues with the TBD62503APG, start by verifying the power supply voltage, checking for proper PCB layout and thermal design, and ensuring that the input signals are within the recommended specifications. If issues persist, consult Toshiba's application notes and technical support resources.
