TBD62783AFG - Toshiba

Description: TOSHIBA BiCD Integrated Circuit Silicon Monolithic

Download TBD62783AFG Model

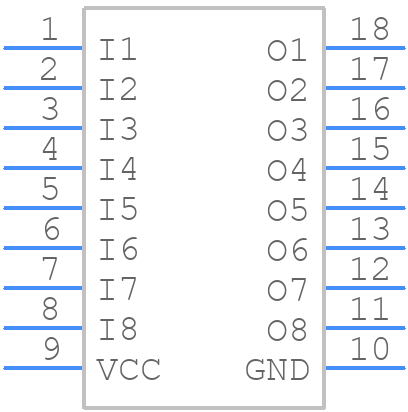

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TBD62783AFG - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP18-P-375-1.27
click to zoom
3D Models
TBD62783AFG - Toshiba  - 3D model - Small Outline Packages - SOP18-P-375-1.27
click to zoom

TBD62783AFG Details

  • Manufacturer Part Number:

    TBD62783AFG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7.05

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    1

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G18

  • Length:

    12.5 mm

  • Number of Functions:

    8

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    0.4 A

  • Output Peak Current Limit-Nom:

    0.4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    2.45 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Max:

    50 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7 mm

TBD62783AFG Frequently Asked Questions (FAQs)

  • A thermal pad is recommended to be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure that the input capacitor (Cin) is placed close to the VIN pin, and the output capacitor (Cout) is placed close to the VOUT pin. Also, use a low-ESR capacitor for Cout.
  • The TBD62783AFG is rated for operation up to 85°C ambient temperature. However, derating is recommended above 70°C to ensure reliable operation.
  • No, a ceramic capacitor is not recommended for Cin due to its high impedance at high frequencies. A low-ESR electrolytic capacitor or a film capacitor is recommended instead.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of Cout, and fsw is the switching frequency.
