TBP01R2-508-06BE - Same Sky

Description: 2~24 Poles, Pluggable, Receptacle, Vertical, 5.08 Pitch, Terminal Block Connector

Download TBP01R2-508-06BE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TBP01R2-508-06BE - Same Sky - PCB symbol
click to zoom

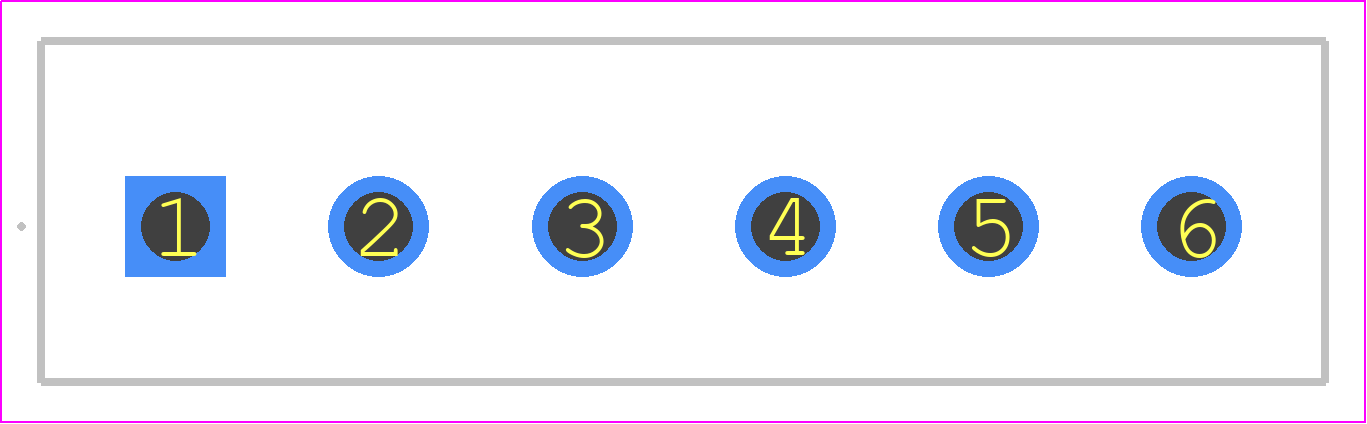

PCB Footprints
TBP01R2-508-06BE - Same Sky PCB footprint - Other - Other - TBP01R2-508-06BE
click to zoom
3D Models
TBP01R2-508-06BE - Same Sky - 3D model - Other - TBP01R2-508-06BE
click to zoom

TBP01R2-508-06BE Details

  • Manufacturer Part Number:

    TBP01R2-508-06BE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Same Sky

  • YTEOL:

    8.56

  • Additional Feature:

    STANDARD: UL 94V-0; PA66

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    16 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CE; CUL; IEC; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

TBP01R2-508-06BE Frequently Asked Questions (FAQs)

  • The recommended PCB layout is to keep the input and output traces as short as possible, and to use a solid ground plane to reduce EMI. Additionally, it's recommended to use a 10nF capacitor between the input and ground for filtering.
  • To ensure reliable operation in high-temperature environments, it's recommended to derate the power handling of the component according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow and thermal management around the component.
  • The maximum allowable voltage for the input and output pins is 6V, exceeding which may cause damage to the component.
  • Yes, the TBP01R2-508-06BE is suitable for use in switching power supply applications due to its high-frequency capability and low ESR. However, ensure that the component is properly bypassed and filtered to minimize EMI.
  • The recommended soldering profile is a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TBP01R2-508-06BE Overview

Use the download button to access the TBP01R2-508-06BE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TBP01, or try a keyword search, such as Terminals and Terminal Blocks

About Same Sky

Tracing our roots back to 1989 just outside of Portland, Oregon, Same Sky® (formerly CUI Devices) is an electronic components manufacturer dedicated to nurturing the spirit of innovation by caring more than is expected, embracing evolution, taking a holistic approach, and having fun along the away. We specialize in an ever-expanding range of product technologies, including audio, interconnect, motion, relay, sensor, switch and thermal management solutions.
