Part Image

TBP01R2-508-08BE - Same Sky

Description: 2~24 Poles, Pluggable, Receptacle, Vertical, 5.08 Pitch, Terminal Block Connector

Download TBP01R2-508-08BE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TBP01R2-508-08BE - Same Sky - PCB symbol
click to zoom

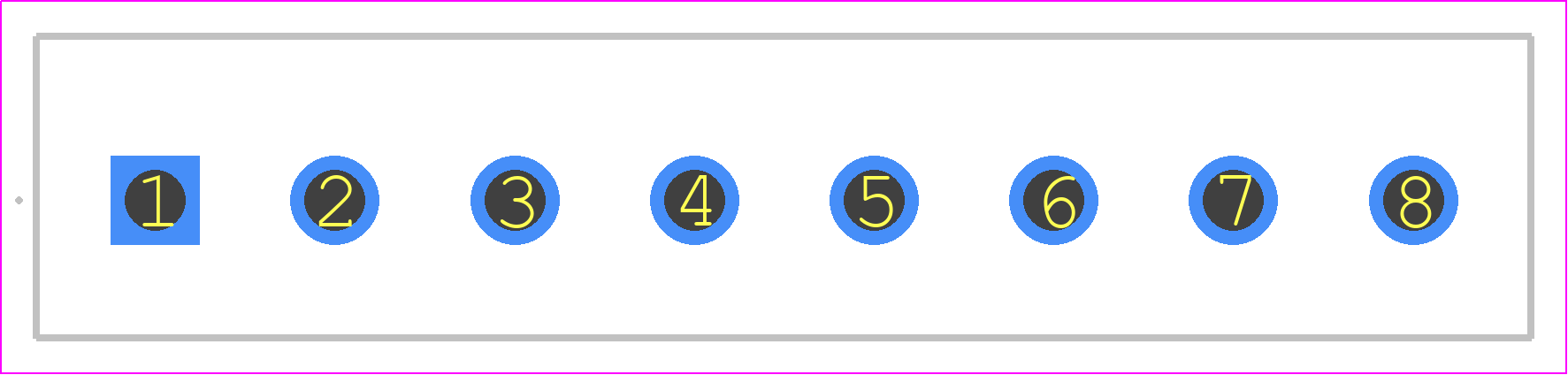

PCB Footprints
TBP01R2-508-08BE - Same Sky PCB footprint - Other - Other - TBP01R2-508-08BE
click to zoom
3D Models
TBP01R2-508-08BE - Same Sky - 3D model - Other - TBP01R2-508-08BE
click to zoom

TBP01R2-508-08BE Details

  • Manufacturer Part Number:

    TBP01R2-508-08BE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Same Sky

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, PA66

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    16 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CE; CUL; IEC; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

TBP01R2-508-08BE Frequently Asked Questions (FAQs)

  • CUI Devices provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
  • The TBP01R2-508-08BE is designed to meet safety and regulatory requirements such as UL, IEC, and CE. However, it's essential to ensure that the entire system design, including the transformer, meets these requirements. Consult with a qualified safety engineer or regulatory expert to ensure compliance.
  • While the datasheet provides a recommended operating temperature range, the maximum operating temperature range may be higher. According to CUI Devices, the TBP01R2-508-08BE can operate up to 125°C with derating. However, it's essential to consult with the manufacturer or a qualified engineer to determine the suitable operating temperature range for your specific application.
  • The TBP01R2-508-08BE is designed for general-purpose applications, but it may not be suitable for high-vibration or high-shock environments. CUI Devices provides transformers with enhanced ruggedization options for such applications. Consult with the manufacturer or a qualified engineer to determine the best solution for your specific requirements.
  • The TBP01R2-508-08BE is designed to meet EMI and EMC requirements, but it's essential to ensure that the entire system design, including the transformer, meets these requirements. Consult with a qualified EMI/EMC engineer to ensure compliance and implement necessary mitigation strategies.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TBP01R2-508-08BE Overview

Use the download button to access the TBP01R2-508-08BE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TBP01, or try a keyword search, such as Terminals and Terminal Blocks

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
