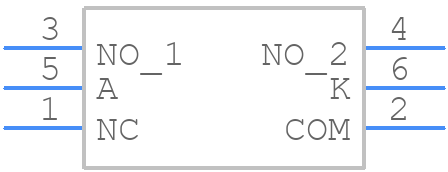

Symbol

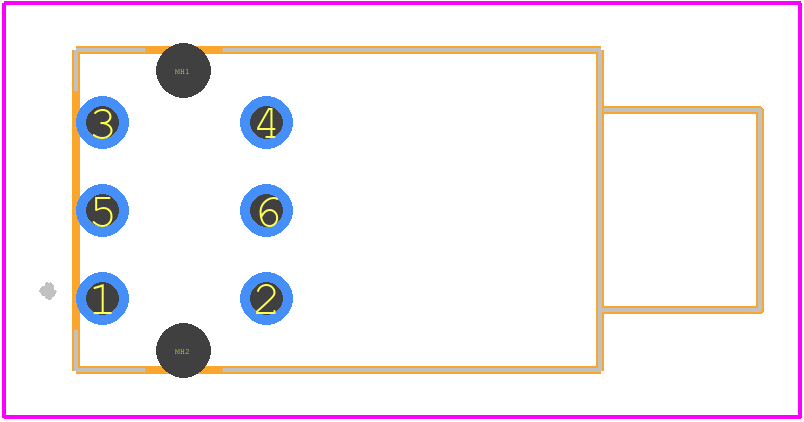

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TC006-N12ABA
- Part Number TC006-N12ABA
- Manufacturer WB
- Pin Count 6
- Part Category Switch
- Package Category Other
- Footprint Name Other - TC006-N12ABA-4
- Released Date Sep 11, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TC006-N12ABA Details
-
Manufacturer Part Number:
TC006-N12ABA
-
Manufacturer:
WB Sensors
Trust Checks
Expert Contribution
System Verified
Community Approved
TC006-N12ABA Overview
Use the download button to access the TC006-N12ABA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TC006,
or try a keyword search, such as Keypad Switches
