TC1-1-13M+ - Mini-Circuits

Description: RF Transformer

Download TC1-1-13M+ Model

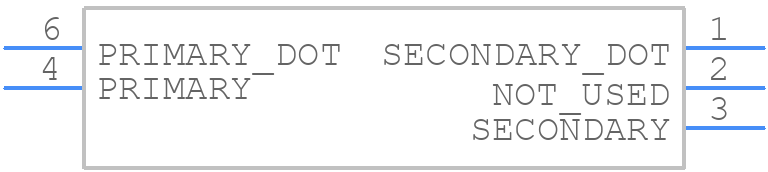

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC1-1-13M+ - Mini-Circuits PCB footprint - Other - Other - TC4-14+-1
click to zoom
3D Models
TC1-1-13M+ - Mini-Circuits  - 3D model - Other - TC4-14+-1
click to zoom

TC1-1-13M+ Details

  • Manufacturer Part Number:

    TC1-1-13M+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    India, Indonesia, Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    HEIGHT & LENGTH DIM INCLUDES TERMINALS ALSO

  • Application:

    SIGNAL

  • Cut-off Frequency-Max:

    3000 MHz

  • Cut-off Frequency-Min:

    4.5 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    4.06 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    3000000 kHz

  • Operating Frequency-Min:

    4500 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC1-1-13M+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TC1-1-13M+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can use online impedance matching tools or consult with a RF engineer to design the matching network.
  • The TC1-1-13M+ can handle up to 1W of continuous power. However, it's recommended to derate the power handling to 0.5W or less to ensure reliable operation and minimize the risk of overheating.
  • The TC1-1-13M+ is rated for operation up to 85°C. However, it's recommended to derate the power handling and consider using a heat sink or thermal management system if the device will be operating in a high-temperature environment.
  • Use a combination of visual inspection, signal analysis, and measurement tools such as a spectrum analyzer or vector network analyzer to troubleshoot issues. Consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC1-1-13M+ Overview

Use the download button to access the TC1-1-13M+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC1-1, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
