TC1-1-13MG2+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers 1:1 CORE & WIRE Transformer, 4.5 - 3000 MHz, 50 ohms

Download TC1-1-13MG2+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

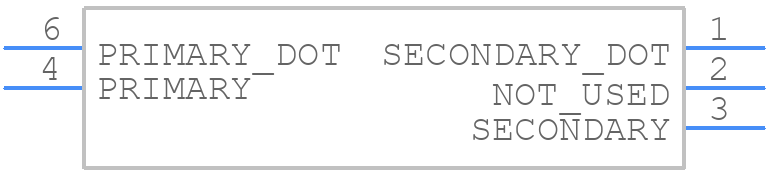

TC1-1-13MG2+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TC1-1-13MG2+ - Mini-Circuits PCB footprint - Other - Other - TC1-1-13MG2+-1
click to zoom
3D Models
TC1-1-13MG2+ - Mini-Circuits - 3D model - Other - TC1-1-13MG2+-1
click to zoom

TC1-1-13MG2+ Details

  • Manufacturer Part Number:

    TC1-1-13MG2+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    LENGTH DIM INCLUDES TERMINAL ALSO

  • Application:

    SIGNAL

  • Cut-off Frequency-Max:

    3000 MHz

  • Cut-off Frequency-Min:

    4.5 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    3.81 mm

  • Insertion Loss:

    3 dB

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    3000000 kHz

  • Operating Frequency-Min:

    4500 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Power Rating:

    0.25 W

  • Primary Impedance:

    50 OHMS

  • Secondary Impedance:

    50 OHMS

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC1-1-13MG2+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TC1-1-13MG2+ is -40°C to +85°C.
  • Yes, the TC1-1-13MG2+ is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The typical current draw of the TC1-1-13MG2+ is 30mA, but this can vary depending on the specific application and operating conditions.
  • Yes, the TC1-1-13MG2+ is suitable for use in high-reliability and military applications, as it meets the requirements of MIL-PRF-38534.
  • The recommended PCB layout and footprint for the TC1-1-13MG2+ can be found in the Mini-Circuits application note AN-60-012, which provides detailed guidelines for optimal performance.
