TC1-1-43X+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers 1:1 CORE & WIRE Transformer, 650 - 4000 MHz, 50 ohms

Download TC1-1-43X+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

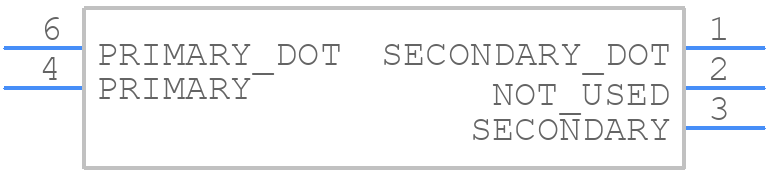

Symbol
TC1-1-43X+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TC1-1-43X+ - Mini-Circuits PCB footprint - Other - Other - TC1-1-43X+-1
click to zoom
3D Models
TC1-1-43X+ - Mini-Circuits - 3D model - Other - TC1-1-43X+-1
click to zoom

TC1-1-43X+ Details

  • Manufacturer Part Number:

    TC1-1-43X+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India, Indonesia, USA

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    HEIGHT & LENGTH DIM INCLUDES TERMINALS ALSO; PACKING ALSO AVAILABLE IN 7 INCH REEL

  • Cut-off Frequency-Min:

    650 MHz

  • Height:

    4.06 mm

  • Insertion Loss:

    2 dB

  • JESD-609 Code:

    e3

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC1-1-43X+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TC1-1-43X+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can use online impedance matching tools or consult with a RF engineer to design the matching network.
  • The TC1-1-43X+ can handle up to 1W of continuous power. However, it's recommended to derate the power handling to 0.5W or less to ensure reliable operation and minimize the risk of overheating.
  • The TC1-1-43X+ is rated for operation up to 85°C. However, it's recommended to derate the power handling and consider using a heat sink or thermal management system if operating in high-temperature environments.
  • Use a signal generator and a spectrum analyzer to test the TC1-1-43X+. Check for signs of overheating, such as reduced gain or increased noise floor. Consult the datasheet and application notes for troubleshooting guides and contact Mini-Circuits' technical support if needed.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC1-1-43X+ Overview

Use the download button to access the TC1-1-43X+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC1-1, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
