Part Image

TC1-1T+ - Mini-Circuits

Description: Surface Mount RF Transformer 50Ω 0.4 to 500 MHz

Download TC1-1T+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

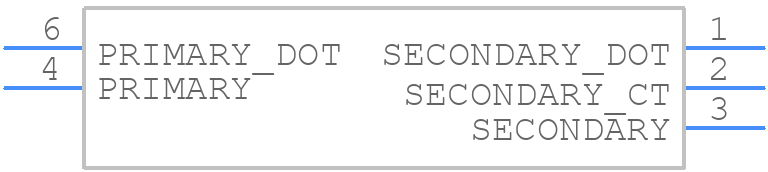

Symbol
TC1-1T+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TC1-1T+ - Mini-Circuits PCB footprint - Other - Other - TC1-1T+-1
click to zoom
3D Models
TC1-1T+ - Mini-Circuits - 3D model - Other - TC1-1T+-1
click to zoom

TC1-1T+ Details

  • Manufacturer Part Number:

    TC1-1T+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO

  • Application:

    SIGNAL

  • Cut-off Frequency-Max:

    500 MHz

  • Cut-off Frequency-Min:

    1.5 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    4.06 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    500000 kHz

  • Operating Frequency-Min:

    400 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC1-1T+ Frequently Asked Questions (FAQs)

  • The TC1-1T+ can operate from -40°C to +85°C, but it's recommended to derate the power handling above 70°C.
  • The TC1-1T+ has a nominal impedance of 50 ohms. You can use a pi-network or a T-network to match the impedance to your system. Consult the Mini-Circuits application note AN-60-1 for more information.
  • The TC1-1T+ can handle up to 1 watt of continuous power, but it's recommended to derate the power handling at higher frequencies. Consult the datasheet for more information.
  • Yes, the TC1-1T+ can be used in switching applications, but it's recommended to limit the switching frequency to below 100 kHz to avoid overheating. Consult the Mini-Circuits application note AN-60-2 for more information.
  • Use a soldering iron with a temperature of 250°C to 270°C and a solder with a melting point of 180°C to 190°C. Apply a small amount of solder to the pad and component lead, and use a soldering technique that minimizes the thermal stress on the component.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TC1-1T+ Overview

Use the download button to access the TC1-1T+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC1-1, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
