TC1-1TG2+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers TC XFMR / SURF MOUNT / RoHS

Download TC1-1TG2+ Model

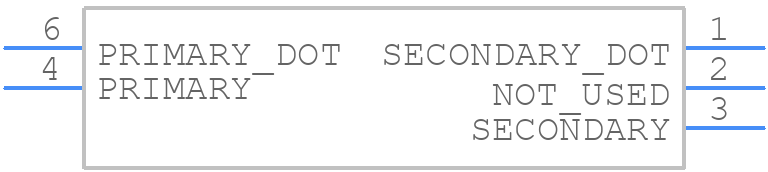

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC1-1TG2+ - Mini-Circuits PCB footprint - Other - Other - AT224-3_2021
click to zoom
3D Models
TC1-1TG2+ - Mini-Circuits  - 3D model - Other - AT224-3_2021
click to zoom

TC1-1TG2+ Details

  • Manufacturer Part Number:

    TC1-1TG2+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    LENGTH DIM INCLUDES TERMINALS ALSO

  • Application:

    SIGNAL

  • Cut-off Frequency-Max:

    500 MHz

  • Cut-off Frequency-Min:

    0.4 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    3.81 mm

  • Insertion Loss:

    3 dB

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    500000 kHz

  • Operating Frequency-Min:

    400 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC1-1TG2+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TC1-1TG2+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can also use simulation software like ADS or AWR to optimize the matching network.
  • The TC1-1TG2+ can handle up to 1W of continuous power. However, it's recommended to derate the power handling based on the operating frequency and environmental conditions to ensure reliable operation.
  • While the TC1-1TG2+ is primarily designed for linear applications, it can be used in switching applications with some caution. Ensure that the switching frequency is within the device's bandwidth, and consider adding external components to absorb switching transients.
  • Common issues include overheating, oscillations, or poor gain. Troubleshoot by checking the PCB layout, impedance matching, and power supply quality. Use a spectrum analyzer or oscilloscope to identify issues and optimize the circuit accordingly.
