TC1-1T-152X+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers 1:1 CORE & WIRE Transformer, 5 - 1500 MHz, 50

Download TC1-1T-152X+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

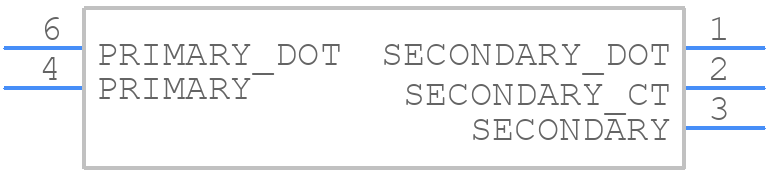

Symbol
TC1-1T-152X+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TC1-1T-152X+ - Mini-Circuits PCB footprint - Other - Other - TC1-1T-152X+-2
click to zoom
3D Models
TC1-1T-152X+ - Mini-Circuits - 3D model - Other - TC1-1T-152X+-2
click to zoom

TC1-1T-152X+ Details

  • Manufacturer Part Number:

    TC1-1T-152X+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Cut-off Frequency-Max:

    1500 MHz

  • Cut-off Frequency-Min:

    5 MHz

  • Height:

    4.06 mm

  • Insertion Loss:

    2.5 dB

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7/13 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC1-1T-152X+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TC1-1T-152X+ has a maximum junction temperature of 125°C. To ensure reliable operation, it's crucial to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal tape, or a thermally conductive PCB material.
  • The TC1-1T-152X+ has a maximum power handling of 1W. Exceeding this power rating can lead to device damage or failure. It's essential to ensure that the input power is within the specified limits to maintain the device's reliability and performance.
  • While the TC1-1T-152X+ is primarily designed for linear applications, it can be used in switching applications with caution. However, the device's performance and reliability may be affected by the high-frequency switching signals. It's recommended to consult with Mini-Circuits' application engineers or perform thorough testing to ensure the device's suitability for switching applications.
  • The lead time and availability of the TC1-1T-152X+ can vary depending on the region, distributor, and quantity. It's recommended to check with authorized distributors or Mini-Circuits' website for the latest lead time and availability information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC1-1T-152X+ Overview

Use the download button to access the TC1-1T-152X+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC1-1, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
