TC1044SEOA - Microchip

Description: Microchip TC1044SEOA, Charge Pump Inverting 20mA 45 kHz, -1.5 → -12 V 8-Pin, SOIC

Download TC1044SEOA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

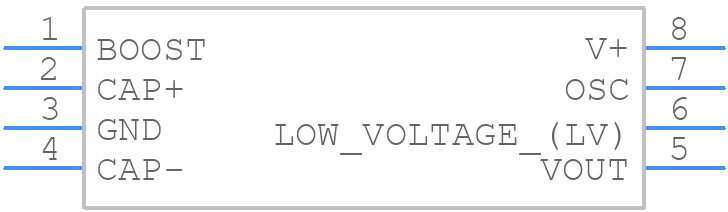

Symbol
TC1044SEOA - Microchip - PCB symbol
click to zoom
PCB Footprints
TC1044SEOA - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC -2
click to zoom
3D Models
TC1044SEOA - Microchip - 3D model - Small Outline Packages - 8-Pin SOIC -2
click to zoom

TC1044SEOA Details

  • Manufacturer Part Number:

    TC1044SEOA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    12 V

  • Input Voltage-Min:

    1.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    -12 V

  • Output Voltage-Min:

    -1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.18 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    45 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

TC1044SEOA Frequently Asked Questions (FAQs)

  • Microchip recommends a compact layout with the IC placed close to the bypass capacitors, and the input and output pins should be routed away from each other to minimize noise coupling. Additionally, a solid ground plane and a low-ESR capacitor are recommended for optimal performance.
  • To ensure stability, the output capacitor should be selected based on the output voltage and load current. A minimum output capacitance of 10uF is recommended, and the capacitor should be placed close to the IC. Additionally, the input voltage should be well-regulated and the input capacitor should be selected based on the input voltage and current.
  • The TC1044SEOA can handle input voltages up to 12V, but it's recommended to operate within the specified input voltage range of 2.7V to 10V for optimal performance and reliability.
  • The TC1044SEOA is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures to ensure reliable operation.
  • The output voltage of the TC1044SEOA can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the resistors in the feedback network, Vin is the input voltage, and Vref is the reference voltage (typically 1.25V).
