TC1411EOA - Microchip

Description: Microchip TC1411EOA, MOSFET Power Driver, 1A, 4.5 → 16 V, Inverting, 8-Pin SOIC

Download TC1411EOA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

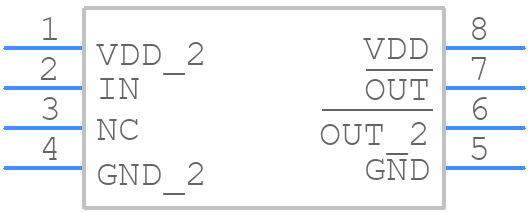

Symbol
TC1411EOA - Microchip - PCB symbol
click to zoom
PCB Footprints
TC1411EOA - Microchip PCB footprint - Other - Other - SOIC127P600X175-8N-ren1
click to zoom

TC1411EOA Details

  • Manufacturer Part Number:

    TC1411EOA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    1 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    16 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage1-Max:

    16 V

  • Supply Voltage1-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.085 µs

  • Turn-on Time:

    0.085 µs

  • Width:

    3.9 mm

TC1411EOA Frequently Asked Questions (FAQs)

  • Microchip recommends following good PCB design practices, such as keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, using a shielded cable and connector for the output can help reduce EMI.
  • The TC1411EOA requires a single 5V supply, and it's recommended to use a low-noise, low-dropout regulator. Power sequencing is not critical, but it's recommended to power up the device after the input voltage has stabilized. A soft-start circuit can be used to reduce inrush current.
  • The maximum cable length depends on the specific application and the type of cable used. As a general guideline, Microchip recommends using a shielded cable with a maximum length of 10 feet (3 meters) for high-speed signals. The cable type should be chosen based on the specific signal frequency and amplitude requirements.
  • To troubleshoot issues with the TC1411EOA, start by verifying the input voltage and current, and checking for proper PCB layout and routing. Use an oscilloscope to measure the output voltage and current, and look for signs of oscillation or ringing. Check the device's thermal performance and ensure it's within the recommended operating temperature range.
  • The TC1411EOA is rated for operation up to 125°C, but thermal management is still crucial to ensure reliable operation. Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Avoid using the device in environments with high humidity or moisture.
