TC1411NEOA - Microchip

Description: 1A High-Speed MOSFET Drivers

Download TC1411NEOA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

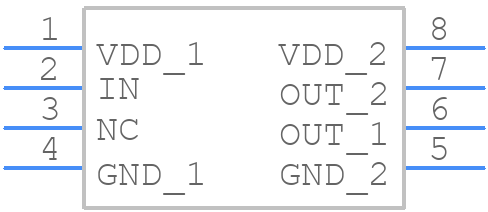

TC1411NEOA - Microchip - PCB symbol
click to zoom
PCB Footprints
TC1411NEOA - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (SOIC)
click to zoom
3D Models
TC1411NEOA - Microchip - 3D model - Small Outline Packages - (SOIC)
click to zoom

TC1411NEOA Details

  • Manufacturer Part Number:

    TC1411NEOA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    1 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    16 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage1-Max:

    16 V

  • Supply Voltage1-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.085 µs

  • Turn-on Time:

    0.085 µs

  • Width:

    3.9 mm

TC1411NEOA Frequently Asked Questions (FAQs)

  • The TC1411NEOA can operate up to 100 MHz, but the maximum frequency is dependent on the specific application and layout.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as using a heat sink and ensuring good airflow. Additionally, the device should be operated within its specified temperature range of -40°C to +125°C.
  • To minimize EMI, it is recommended to follow good PCB layout practices, such as keeping the signal traces short and away from noise sources, using ground planes, and avoiding 90-degree turns in the signal traces. Additionally, the device should be placed in a shielded area to reduce radiation.
  • To troubleshoot issues with the TC1411NEOA, it is recommended to follow a systematic approach, such as checking the power supply, signal integrity, and device configuration. Additionally, using debugging tools, such as oscilloscopes and logic analyzers, can help identify the root cause of the issue.
  • To ensure reliable operation, it is recommended to use a low-ESR capacitor (e.g., 0.1 μF) as close to the device as possible, and to use a ferrite bead or inductor in series with the power supply to filter out high-frequency noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC1411NEOA Overview

Use the download button to access the TC1411NEOA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC141, or try a keyword search, such as MOSFET Drivers
