Part Image

TC1411NEPA - Microchip

Description: Gate Drivers 1A Sngl N-Inv

Download TC1411NEPA Model

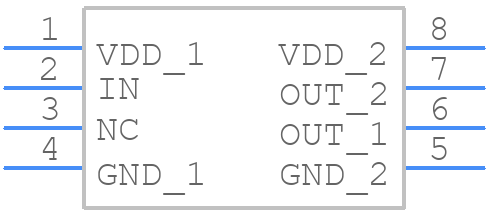

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

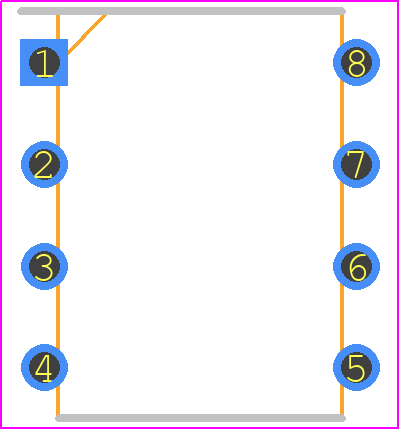

TC1411NEPA - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Lead PDIP-300 MIL BODY
click to zoom

3D Models

TC1411NEPA - Microchip  - 3D model - Dual-In-Line Packages - 8-Lead PDIP-300 MIL BODY
click to zoom

TC1411NEPA Details

  • Manufacturer Part Number:

    TC1411NEPA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP, DIP8,.3

  • Pin Count:

    8

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    34 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • Risk Rank:

    1.76

  • YTEOL:

    5.7

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.271 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    1 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power Supplies:

    4.5/16 V

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    5.334 mm

  • Subcategory:

    MOSFET Drivers

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    16 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage1-Max:

    16 V

  • Supply Voltage1-Min:

    4.5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.085 µs

  • Turn-on Time:

    0.085 µs

  • Width:

    7.62 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC1411NEPA Overview

Use the download button to access the TC1411NEPA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC141, or try a keyword search, such as MOSFET Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th

Parts related to TC1411NEPA

Showing 0 results

TC1411NEPA Alternates

Showing results

Image Part Number Model
Part Image TC1411NVPA Microchip Technology Inc

1 A BUF OR INV BASED MOSFET DRIVER, PDIP8, 0.300 INCH, PLASTIC, MS-001, DIP-8
