TC2-1T+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers TC XFMR / SURF MOUNT / RoHS

Download TC2-1T+ Model

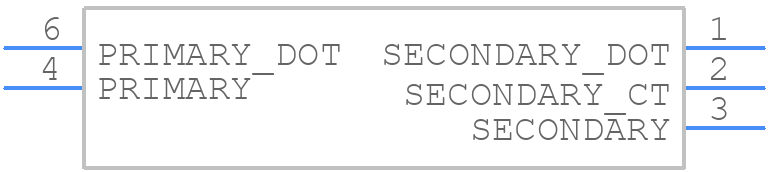

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC2-1T+ - Mini-Circuits PCB footprint - Other - Other - TC2-1T+-1
click to zoom
3D Models
TC2-1T+ - Mini-Circuits  - 3D model - Other - TC2-1T+-1
click to zoom

TC2-1T+ Details

  • Manufacturer Part Number:

    TC2-1T+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.3

  • Additional Feature:

    HEIGHT & LENGTH DIM INCLUDES TERMINALS ALSO; PACKING ALSO AVAILABLE IN 7 INCH REEL

  • Application:

    MATCHING

  • Cut-off Frequency-Min:

    3 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    4.06 mm

  • Insertion Loss:

    1 dB

  • JESD-609 Code:

    e3

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    300000 kHz

  • Operating Frequency-Min:

    3000 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.91 mm

TC2-1T+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TC2-1T+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network with resistors and capacitors to transform the impedance. You can use online impedance matching tools or consult with a RF engineer for assistance.
  • The TC2-1T+ can handle up to +15 dBm of input power. Exceeding this limit may cause compression, distortion, or even damage to the device.
  • The TC2-1T+ requires a positive voltage supply (Vcc) and a negative voltage supply (Vee). Typically, Vcc is +5V to +12V, and Vee is -5V to -12V. The recommended biasing circuit is shown in the datasheet.
  • The TC2-1T+ operates from -40°C to +85°C. However, the device's performance may degrade at extreme temperatures. Ensure proper heat sinking and thermal management to maintain optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC2-1T+ Overview

Use the download button to access the TC2-1T+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC2-1, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.

Parts related to TC2-1T+

Showing 0 results

TC2-1T+ Alternates

Showing results

Image Part Number Model
Part Image TC2-1T Mini-Circuits

RF Transformer, 3MHz Min, 300MHz Max, 1:1.414
