Technical Content
Part Image

TC2-72T+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers TC XFMR / SURF MOUNT / RoHS

Download TC2-72T+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

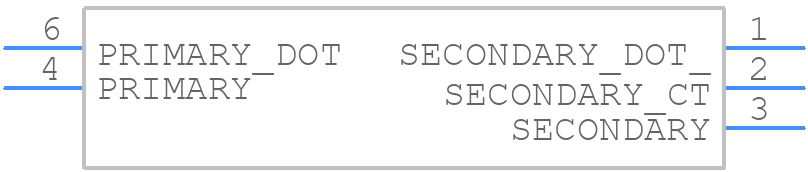

TC2-72T+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TC2-72T+ - Mini-Circuits PCB footprint - Other - Other - AT1521_2022
click to zoom
3D Models
TC2-72T+ - Mini-Circuits - 3D model - Other - AT1521_2022
click to zoom

TC2-72T+ Details

  • Manufacturer Part Number:

    TC2-72T+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    700 MHz

  • Cut-off Frequency-Min:

    10 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    4.06 mm

  • Insertion Loss:

    1.8 dB

  • JESD-609 Code:

    e3

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    700000 kHz

  • Operating Frequency-Min:

    10000 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC2-72T+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TC2-72T+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network with resistors and capacitors to match the impedance of your system. You can use online impedance matching tools or consult with a RF engineer for assistance.
  • The TC2-72T+ can handle up to 1W of continuous power. However, it's recommended to derate the power handling to 0.5W or less to ensure reliable operation and minimize the risk of overheating.
  • The TC2-72T+ is rated for operation up to 85°C. However, it's recommended to derate the operating temperature to 70°C or less to ensure reliable operation and minimize the risk of overheating.
  • To troubleshoot issues, start by checking the power supply voltage, input signal level, and output termination. Use a spectrum analyzer to check for spurious signals or distortion. Consult the datasheet and application notes for more troubleshooting tips.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC2-72T+ Overview

Use the download button to access the TC2-72T+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC2-7, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
